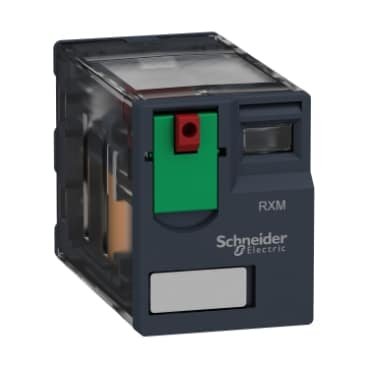

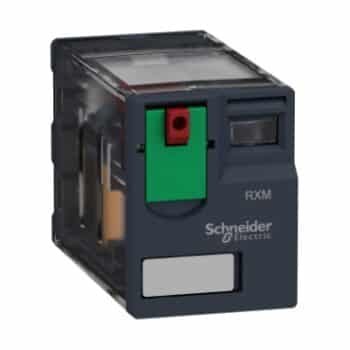

Schneider Electric RXM4AB1F7 Miniature Plug-In Relay
Schneider Electric RXM4AB1F7 Miniature Plug-In Relay
Product Description :
- Miniature plug-in relays are known for their small and space-saving design. They come in various sizes and configurations, making them suitable for applications with limited available space. They are integral components in electrical and control systems, contributing to the automation and operation of various devices and equipment.
Product Specification:
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
|---|---|
| Electrical durability | 100000 cycles for resistive load |
| Average coil consumption in VA | 1.2 at 60 Hz |
| Rated operational voltage limits | 96…132 V AC |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| Average consumption | 1.2 VA at 60 Hz |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.15 Uc |
| Load current | 6 A at 250 V AC 6 A at 28 V DC |
| Operating time | 20 ms |
| Maximum switching capacity | 1500 VA/168 W |
