Schneider Electric ST 1.5/2.5-3031076 Barrier Plate
Schneider Electric ST 1.5/2.5-3031076 Barrier Plate
Product Description:
- These refers to a physical structure or barrier used to separate or block access to certain areas, provide protection, or serve a specific function. AÂ barrier plate can refer to an insulating plate or barrier used to separate or insulate electrical conductors or components to prevent contact and avoid electrical shorts or hazards.

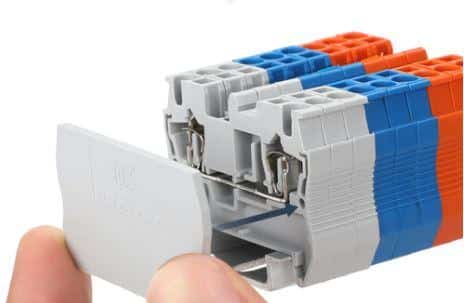

- The Schneider Electric ST 1.5/2.5-3031076 Barrier Plate is a high-quality electrical terminal accessory designed to ensure safe insulation and separation within terminal block assemblies. Built with precision engineering, the Schneider Electric ST 1.5/2.5-3031076 Barrier Plate provides reliable protection against electrical contact, improving system safety and operational stability in industrial control panels.
- This Schneider Electric ST 1.5/2.5-3031076 Barrier Plate is manufactured using durable, high-grade insulating material that delivers excellent resistance to heat, vibration, and electrical stress. It is ideal for use in demanding automation, power distribution, and control applications where secure terminal isolation is required.
Product Specification:
| Stripping length | 8 mm … 10 mm |
| Internal cylindrical gage | A1 |
| Connection in acc. with standard | IECÂ 60947-7-1 |
| Conductor cross section rigid | 0.08 mm² … 1.5 mm² |
| Cross section AWG | 28 … 16 (converted acc. to IEC) |
| Conductor cross section flexible | 0.08 mm² … 1.5 mm² |
| Conductor cross section, flexible [AWG] | 28 … 16 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² … 1.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² … 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² |
| Nominal current | 17.5 A |
| Maximum load current | 17.5 A (with 1.5 mm² conductor cross section) |
| Nominal voltage | 500 V |
| Nominal cross section | 1.5 mm² |
