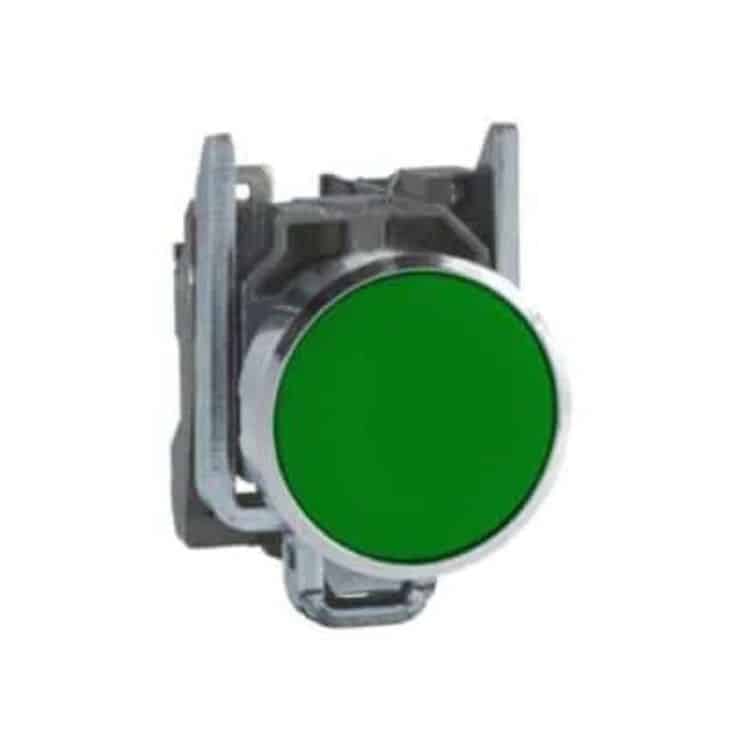

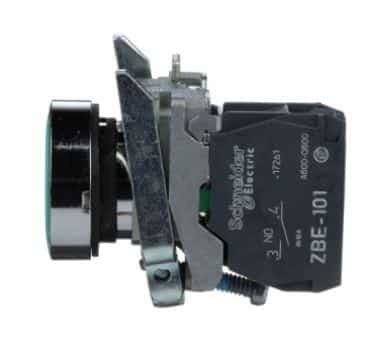

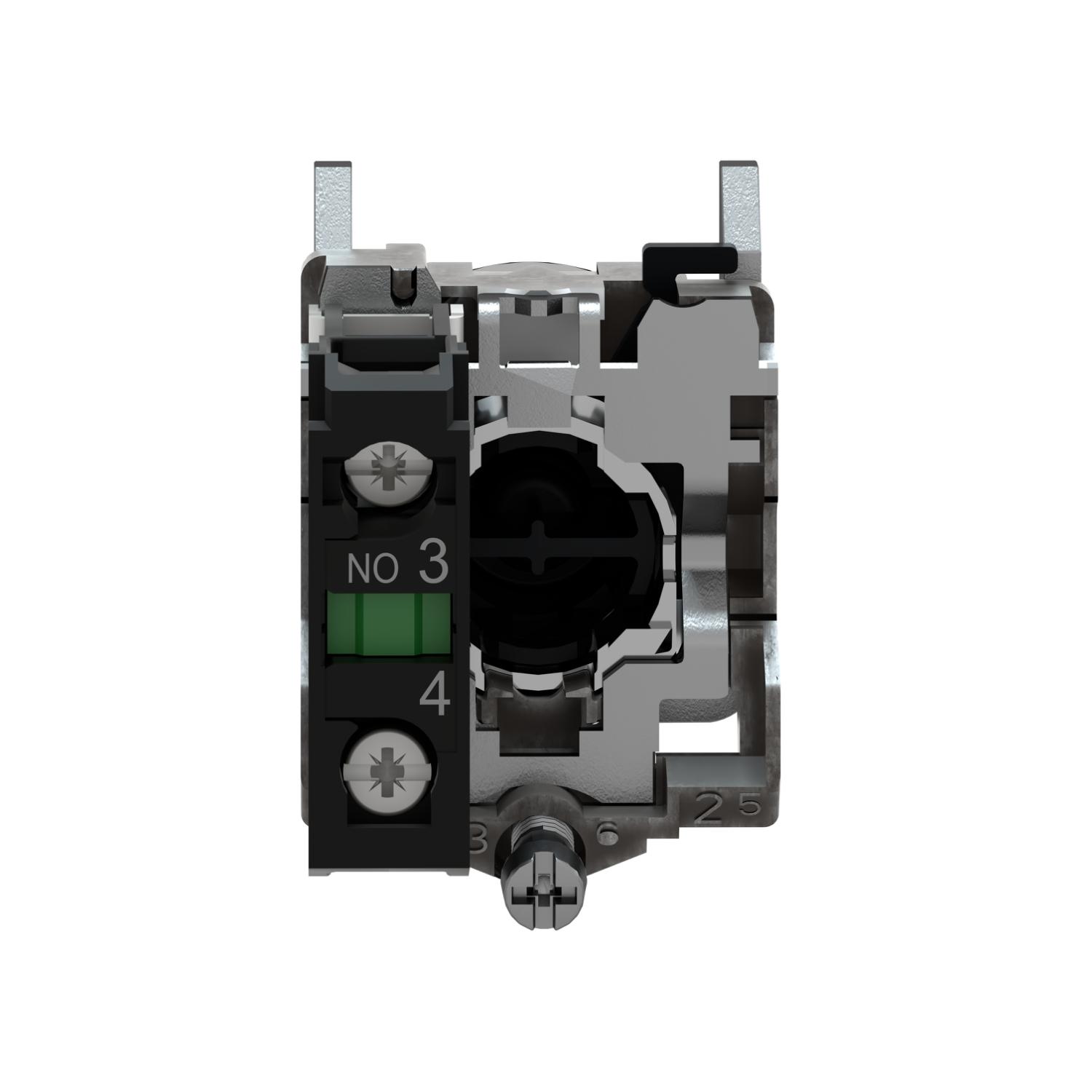

Schneider Electric XB4BA31 Push button
Schneider Electric XB4BA31 Push button
Product Description:
- A push button is a simple electrical switch that is activated by pressing it.
- It is used to make or break a connection in an electrical circuit.
- Push buttons are commonly found in a wide variety of devices, such as computers, home appliances, and industrial machinery, for turning devices on/off or initiating other functions.
- It is one of the most common types of switches used in a wide range of applications, from industrial control panels to consumer electronics.
- Push buttons are use to control devices, initiate actions, or perform various functions based on the specific application.
- Push buttons are simple yet versatile components that play a crucial role in everyday life and industrial processes.
- They provide a tactile and visible means of interaction and control, making them essential in various settings where user input or device control is required.
Product Specification :
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 52 mm |
| Terminals description ISO n°1 | (13-14)NO |
| Net weight | 0.08 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| contacts usage | Standard contacts |
| Positive opening | Without |
| Operating travel | 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.8 N NO changing electrical state |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
