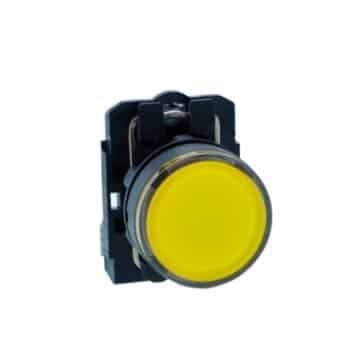

Schneider Electric XB5AW35B1N Push Button
Schneider Electric XB5AW35B1N Push Button
Product Description :
- It is a simple mechanical or electrical device used to control or activate various functions in a wide range of devices and systems. It serves as an interface between the user and the equipment, allowing for user input through physical pressing.
- The circuit is open until the button is pressed, which then closes the circuit and allows current to flow.The circuit is closed until the button is pressed, which opens the circuit and stops current flow.
- Often used for temporary actions, such as turning on a light or initiating a function that stops once the button is released.They are versatile components essential for user interaction and control across a wide range of applications.
Product Specification :
| Height | 42 mm |
|---|---|
| Width | 30 mm |
| Depth | 57 mm |
| Terminals description ISO n°1 | (13-14)NO |
| Product weight | 0.056 kg |
| Device mounting | Fixing hole – diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing mode | Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Marking | Unmarked |
| Contacts usage | Standard contacts |
