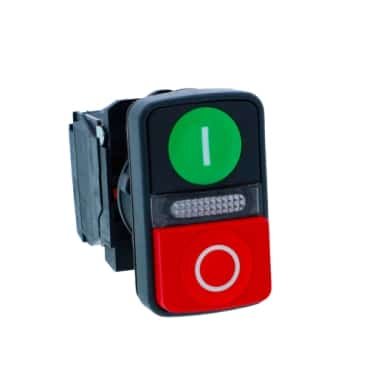

Schneider Electric XB5AW84M5N Double Head Push Button
Schneider Electric XB5AW84M5N Double Head Push Button
Product Description :
- It has 1 green flush button marked ‘I’, 1 red projecting button marked ‘O’, 1 central yellow pilot light, operates with a spring return mechanism, is supplied with 230V AC and uses screw clamp terminals.
- This 2-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections.
- Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Product Specification :
| Bezel material | Dark grey plastic |
|---|---|
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | 1 flush – 1 projecting push-buttons |
| Operators description | Green ”I” – red ”O” |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
