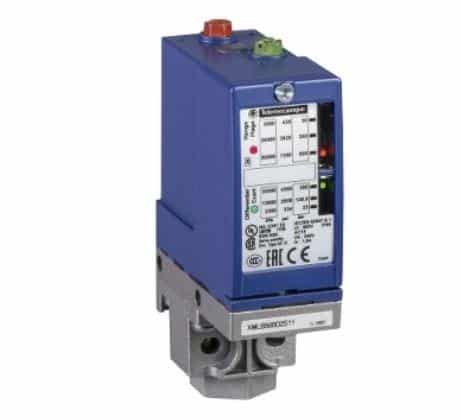

Pressure Switch XMLB 20 bar
- Schneider Electric Xmlb020a2s13 Pressure Switch.
- This Pressure Sensor Has An Adjustable Differential And Regulation Between Double Threshold.
- It Incorporates A 1 C/O Single-Pole Contact.
Product Specification:
| Pressure sensor type | Electromechanical pressure sensor |
|---|---|
| device short name | XMLB |
| Pressure sensor size | 290.08 psi (20 bar) |
| Controlled fluid | Fresh water 32…158 °F (0…70 °C)) Hydraulic oil 32…158 °F (0…70 °C)) |
| Fluid connection type | 1/4″ – 18 NPTF (female) |
| Electrical connection | Screw-clamps terminals, 1 x 0.5…2 x 2.5 mm² |
| AWG Gauge | AWG 20…AWG 14 |
| Cable entry | Cable gland 0.28…0.51 in (7…13 mm) |
| Contacts type and composition | 1 C/O |
| Product Specific Application | – |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Electrical circuit type | Control circuit |
| Scale type | Adjustable differential |
| local display | With |
| Adjustable range of switching point on rising pressure | 18.85…290.08 psi (1.3…20 bar) |
| Adjustable range of switching point on falling pressure | 4.35…266.87 psi (0.3…18.4 bar) |
| Possible differential maximum at high setting | 159.54 psi (11 bar) |
| Maximum permissible accidental pressure | 652.67 psi (45 bar) |
| Destruction pressure | 1305.34 psi (90 bar) |
| Pressure actuator | Diaphragm |
| Materials in contact with fluid | Brass Nitrile Zinc alloy |
| Enclosure Material |
