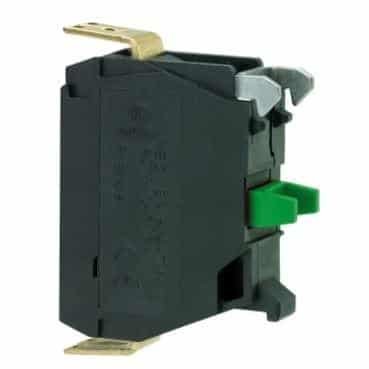

 Schneider Electric ZBE101N Contact Block
Schneider Electric ZBE101N Contact Block
Product Description:
- A contact block often refers to a component use in switches or control panels.
- The contact block features with protected terminals.
- It has 1 normally open slow-break standard contact with positive opening.
- It is a switch block with a conventional free air thermal current of 10A and rated insulation voltage of 600V.
- It offers mechanical durability of about 5 million operating cycles and electrical durability of about 1 million operating cycles. It is made of plastic fixing collar with AgNi contact. It weighs 0.011kg.
- It is used in machine manufacturers (automotive, textiles, timber) and control system panel builders.
Product Specification:
| Terminals description ISO n°1 | (13-14)NO |
|---|---|
| Net weight | 0.011 kg |
| Contacts type and composition | 1 NO |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 |
| Shock resistance | 50 gn conforming to IEC 68-2-27 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Operating travel | 2.6 mm |
| Operating force | 3.8 N |
| Operating torque | 0.14 N.m |
| Torque value | 0.14 N.m |
| Mechanical durability | 5000000 cycles |
