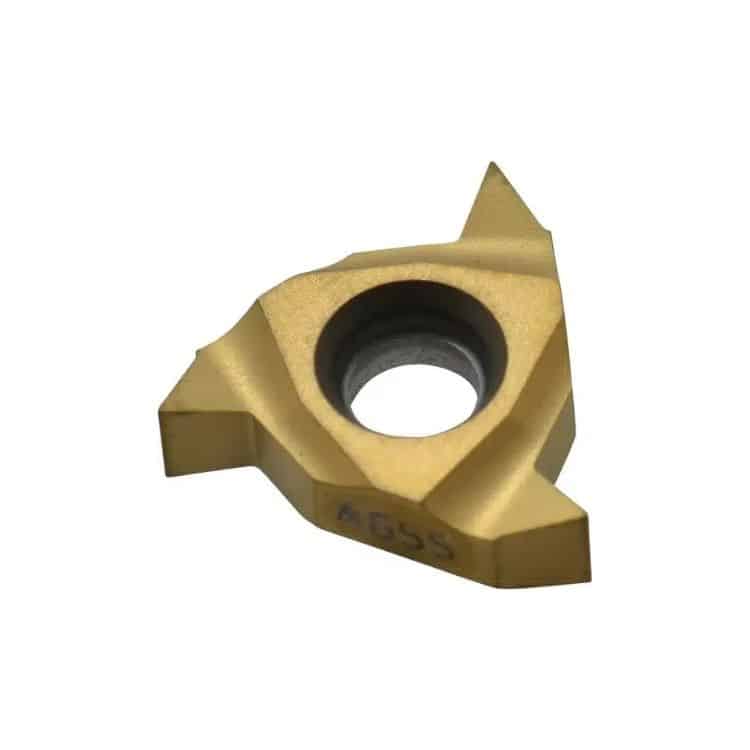

Seco 16NRAG55A CP500 Threading Insert
Seco 16NRAG55A CP500 Threading Insert
Product Description:
- It is a cutting tool use in machining operations to create threads in a workpiece, typically made of metal or other materials. These inserts are design to fit into specialized holders or toolholders, such as threading toolholders or boring bars, to perform threading operations accurately and efficiently.
- The Seco 16NRAG55A CP500 Threading Insert is a premium cutting tool designed for precision threading in metalworking and machining operations. Manufactured by Seco, this high-performance threading insert ensures excellent durability, accuracy, and consistent thread quality for professional workshops and industrial applications.
- Featuring advanced CP500 coating, the Seco 16NRAG55A Threading Insert provides superior wear resistance and heat tolerance, making it ideal for threading a wide range of materials, including steel, stainless steel, and cast iron. Its reliable geometry ensures smooth chip evacuation, reducing tool wear and improving machining efficiency.
Product Specification:
| Insert Style | 16NR |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CP500 |
| Material Grade | Micrograin |
| Thread Type | Internal |
| Pitch (mm) | 0.50 to 3.00 |
| Insert Hand | Right Hand |
| Included Angle | 55 |
| Series | Snap Tap |
| Coating Process | PVD |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0030 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | K; M; P; S |
| Standards | ISO |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0430 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0590 |
| MSC/Manufacturer Number | 16NR AG55 |
| Teeth Per Inch | 48.00 to 8.00 |
| Thickness (Decimal Inch – 4 Decimals) | 0.1366 |
| Coating/Finish | Coated |
