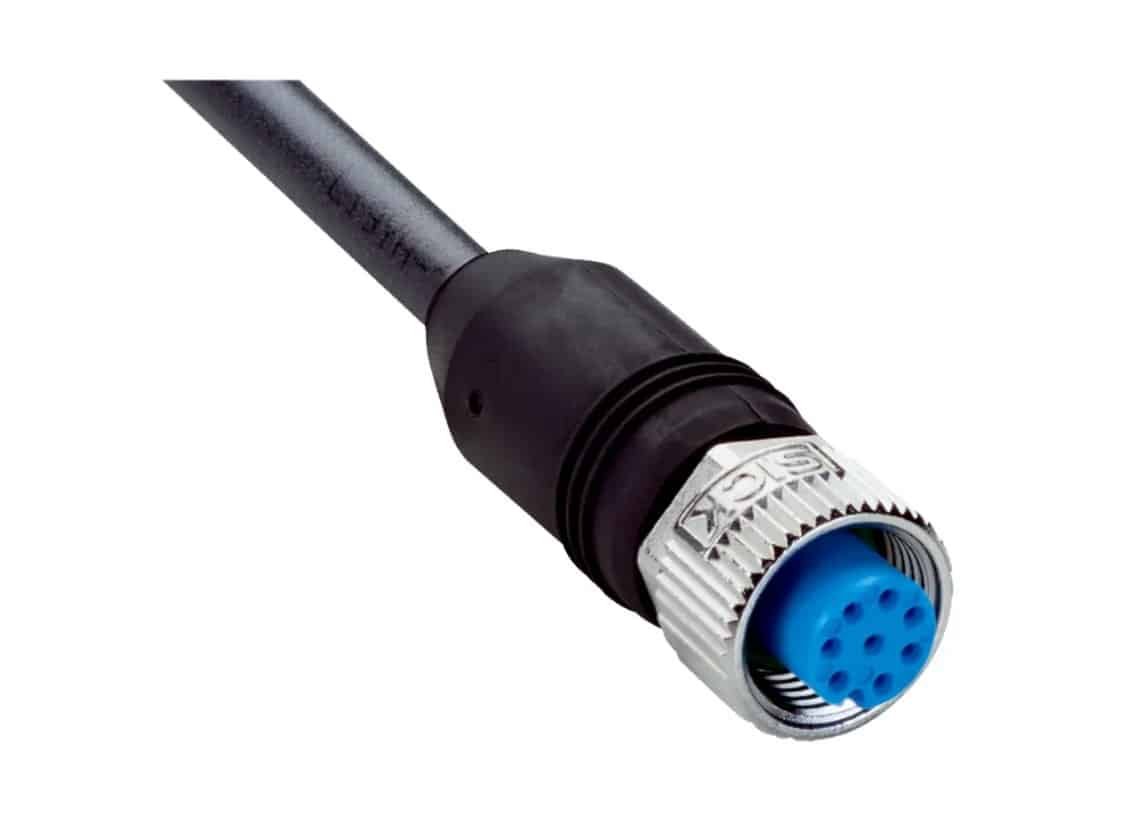

SICK 2095654 Actuator Cable

SICK 2095654 Actuator Cable

SICK 2095654 Actuator Cable

Product Description :

• It is a specialized electrical cable used to connect actuators (mechanical devices that move or control mechanisms) to a power supply and/or control system like a PLC or field controller.
• The actuator cable carries electrical power (typically 12V, 24V, or 230V AC/DC) from the control cabinet or power source to the actuator.Advanced actuators (called intelligent or smart actuators) send feedback back to the control system through the same cable.

Product Specification :

Connection type head A -Female connector, M12, 8-pin, straight, A-coded
Connection type head B – Flying leads
Locking plug connector – Screw connection
Connector material -TPU
Connector color-  Black
Locking nut material – Zinc die-cast, nickel-plated
Seal material -FKM
Tightening torque – 0.6 Nm
Width across flats -13
Cable – 10 m, 8-wire, PUR, halogen-free
Jacket material -PUR, halogen-free
Jacket color – Black
Cable diameter – 5.8 mm
Conductor cross section -0.25 mm²
Shielding – Unshielded
