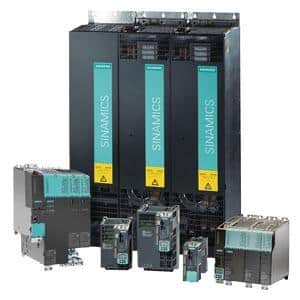

Siemens 6SL33251TG413AA3 Motor Module
Siemens 6SL33251TG413AA3 Motor Module
Product Description:
- A motor module typically refers to a pre-assembled unit that includes the motor and associated components necessary for its operation.
- These modules are designed to make it easier to integrate motors into systems without having to assemble all the individual parts.
- Motor modules are commonly used in applications where space efficiency, ease of installation, and reliability are important.
- It generally refers to a component or module within a system that is responsible for controlling and driving an electric motor.
- These are use in a wide range of applications, from industrial machines to consumer appliances, and motor modules play a crucial role in managing their operation.
Product Specification:
| Supply voltage (DC) | 750Vdc 800Vdc 1000Vdc |
| Supply voltage (DC) | 675Vdc-1035Vdc (750Vdc / 800Vdc / 1000Vdc nom.) |
| Flow | 27L/min (coolant volume flow) |
| Frequency | (output; V/f control mode) 0-550 (output; vector control mode) 0-550 |
| Type of network | DC input |
| Rated current | 1000A < In ≤ 1500A |
| Rated current | 1270A 1230A (based-load current IL) 1136A (based-load current IH) |
| Rated active power (kW) | 1000kW < Pn ≤ 1500kW |
| Rated active power (kW) | 1200kW (at IL; 690Vac) 1000kW (at IH; 690Vac) |
| Rated power (HP) | 1250HP |
| Rated power (HP) | 1250HP (IL; 575Vac) 1000HP (IH; 575Vac) |
| Rated voltage (AC) | 450Vac < Un ≤ 500Vac 500Vac < Un ≤ 600Vac 600Vac < Un ≤ 700Vac |
| Rated voltage (AC) | 500Vac-690Vac |
| Connection type | G 3/4″ B pipe thread ISO 228 (coolant connection) 2 x M12 sockets (DC link / motor connection / PE/GND connection) |
| Efficiency | 0.985 |
| Degree of protection | IP00 |
| Dimensions | Frame size JXL W295mm x H1516mm x D545mm |
