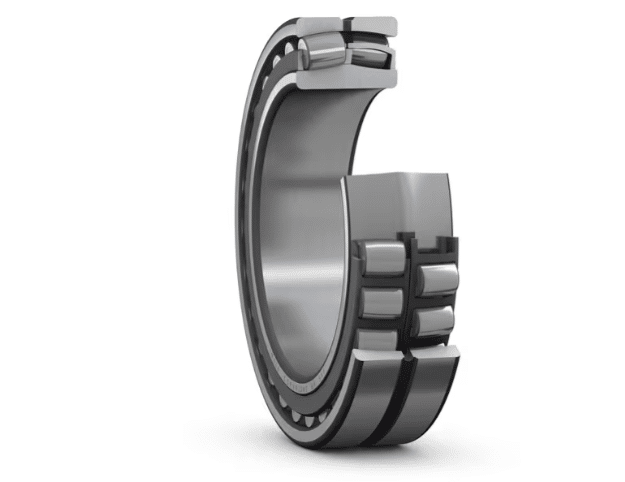

SKF 23140 CCK Spherical Roller Bearing
SKF 23140 CCK Spherical Roller Bearing
Product Description :
- They are a type of rolling-element bearing that can accommodate misalignment and are designed to handle heavy loads. It consists of two rows of symmetrical spherical rollers, a common spherical outer raceway, and an inner ring with two raceways.
- They  can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
- A Spherical Roller Bearing is a heavy-duty bearing designed to support high radial and axial loads in both directions while accommodating misalignment between the shaft and housing. It features two rows of barrel-shaped rollers running on a common spherical raceway, allowing smooth rotation even under extreme conditions. Manufactured from high-quality steel or alloy materials, spherical roller bearings provide durability, vibration resistance, and long service life in demanding industrial applications.
Product Specification :
| Bore diameter | 200Â mm |
| Outside diameter | 340Â mm |
| Width | 112Â mm |
| Basic dynamic load rating | 1 665Â kN |
| Basic static load rating | 2 360Â kN |
| Reference speed | 1 500Â r/min |
| Limiting speed | 1 900Â r/min |
