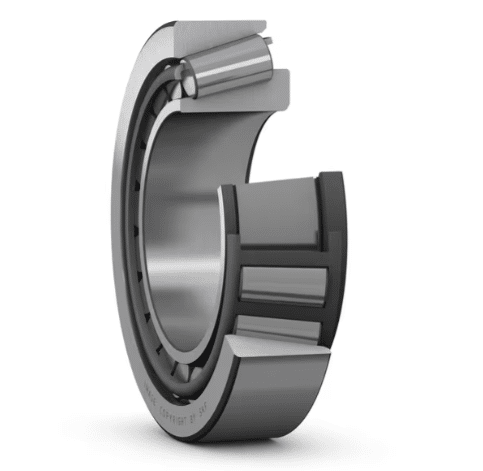

SKF 30208 Single Row Tapered Roller Bearing
SKF 30208 Single Row Tapered Roller Bearing
Product Description :
- It is a type of rolling element bearing that is designed to support radial and axial loads in one direction. It consists of a single inner ring (cone), an outer ring (cup), tapered rollers, and a cage.
- These bearings are commonly use in various applications, including automotive, industrial machinery, and equipment. They are conical in shape, with the large end (the base) near the outer ring and the small end (the apex) near the inner ring. This tapered design allows for efficient distribution of both radial and axial loads.
-
A Single Row Tapered Roller Bearing is engineered to support combined radial and axial loads with precision and durability. Its tapered inner and outer raceways, along with rolling elements, are designed to efficiently manage high load capacities while reducing friction. These bearings are most effective in applications where axial load is applied in one direction, while also accommodating heavy radial loads.
-
Made from high-quality alloy steel, they deliver long service life, smooth operation, and reliable performance under demanding conditions. Commonly used in automotive wheel hubs, gearboxes, agricultural equipment, and heavy machinery, they provide excellent load-bearing capacity and stability.
Product Specification:
| Bore diameter | 40Â mm |
| Outside diameter | 80Â mm |
| Width, total | 19.75Â mm |
| Width, inner ring | 18Â mm |
| Width, outer ring | 16Â mm |
| Contact angle | 14.036 ° |
| Basic dynamic load rating | 75.8Â kN |
| Basic static load rating | 68Â kN |
| Reference speed | 7 000Â r/min |
| Limiting speed | 8 500Â r/min |
