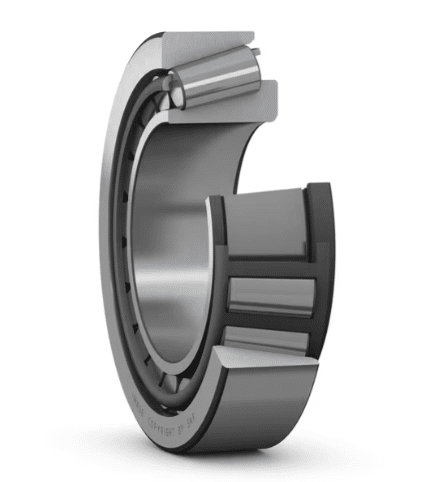

SKF 32207 Tapered Roller Bearing
SKF 32207 Tapered Roller Bearing
Product Description :
- It is a type of rolling element bearing that is designed to support radial and axial loads in one direction. It consists of a single inner ring (cone), an outer ring (cup), tapered rollers, and a cage. These bearings are commonly use in various applications, including automotive, industrial machinery, and equipment. They are conical in shape, with the large end (the base) near the outer ring and the small end (the apex) near the inner ring. This tapered design allows for efficient distribution of both radial and axial loads.
-
A Tapered Roller Bearing is designed to handle combined radial and axial loads efficiently, thanks to its tapered inner and outer raceways along with conical rolling elements. This design allows the bearing to sustain heavy-duty loads and high-impact applications while maintaining smooth, low-friction performance.
-
Constructed from premium-grade alloy steel, tapered roller bearings ensure durability, precision, and long service life even under demanding conditions. They are widely used in automotive wheel hubs, gearboxes, mining equipment, agricultural machinery, and industrial gear drives, where reliability and load-bearing strength are essential.
Product Specification:
| Bore diameter | 35Â mm |
| Outside diameter | 72Â mm |
| Width, total | 24.25Â mm |
| Width, inner ring | 23Â mm |
| Width, outer ring | 19Â mm |
| Contact angle | 14.036 ° |
| Basic dynamic load rating | 81.2Â kN |
| Basic static load rating | 78Â kN |
| Reference speed | 8 000Â r/min |
| Limiting speed | 9 500Â r/min |
