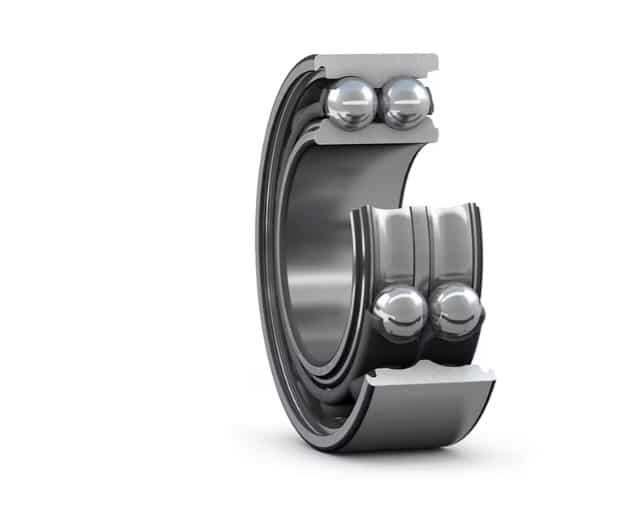

SKF 3313 A/C3 Angular Ball Bearing
SKF 3313 A/C3 Angular Ball Bearing
Product Description :
- It s a specialized type of ball bearing designed to support axial loads in addition to radial loads. Unlike standard ball bearings, which primarily support radial loads, angular contact ball bearings are designed with raceways that have a contact angle between the balls and the races. This angular contact allows the bearing to support both axial (thrust) and radial loads.
- They ball bearings can be preloaded to increase stiffness and reduce internal clearance, which improves their performance in high-speed and precision applications.
- They correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
Product Specification :
-
Bore diameter 65 mm Outside diameter 140 mm Width 58.7 mm Contact angle 30 ° -
Basic dynamic load rating 146 kN Basic static load rating 110 kN Reference speed 5 300 r/min Limiting speed 4 500 r/min
