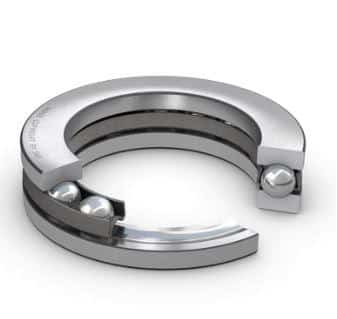

SKF 51117 Ball Bearing
SKF 51117 Ball Bearing
Product Description:
- It is a type of rolling-element bearing that uses balls to reduce friction between two moving parts. These are one of the most common types of bearings due to their efficiency and durability.
- They come in various sizes and configurations to suit different applications, and they play a critical role in the smooth operation of countless machines and mechanical systems.
- These are the most common type and are used in a wide range of applications.
- They have deep, raceway grooves in both the inner and outer rings, allowing them to support radial and axial loads.
Dimensions:
| Bore diameter | 85Â mm |
| Height | 19Â mm |
| Outside diameter | 110Â mm |
| Basic dynamic load rating | 44.9Â kN |
| Basic static load rating | 146Â kN |
| Limiting speed | 4 300Â r/min |
| Reference speed | 3 000Â r/min |
| Axial load capability | Single-direction |
| Cage | Sheet metal |
| Coating | Without |
| Housing washer type | Flat |
| Material, bearing | Bearing steel |
| Number of rows | 1 |
| Tolerance class | Normal |
