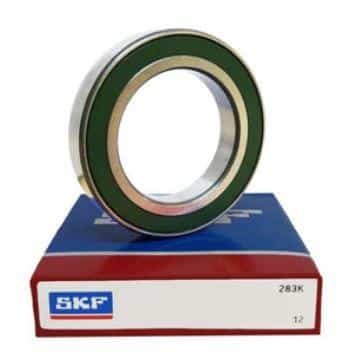

SKF 60042RZ Deep Groove Bearing
SKF 60042RZ Deep Groove Bearing
Product Description:
- It is a type of radial ball bearing that is specifically designed with deep raceways to support radial loads (perpendicular to the shaft) while also accommodating axial loads (parallel to the shaft) in both directions.
- They are fundamental components in many mechanical systems, providing reliable, smooth, and efficient rotation while supporting both radial and axial loads.
- These bearings have deep, uninterrupted raceways on both the inner and outer rings.
- The deep grooves allow the balls to distribute loads evenly and accommodate both radial and axial forces.
- They are designed primarily to handle radial loads, which are perpendicular to the shaft’s axis.
- However, they can also support axial loads, which are parallel to the shaft’s axis, to a certain extent.
Product Specification:
- INSIDE DIAMETER (MM) : 20MM
- OUTSIDE DIAMETER (MM) : 42MM
- WIDTH (MM) : 12MM
- CAGE TYPE : STEEL
- SEALS OR SHIELDS : NON-CONTACT SEAL
- CLEARANCE : STANDARD
- DYNAMIC LOAD RATING (KN) : 9.95
- STATIC LOAD RATING (KN) : 5
- FATIGUE LOAD RATING (KN) : 0.212
- REFERENCE SPEED RATING (R/MIN) : 38000
- LIMITING SPEED RATING (R/MIN) : 24000
