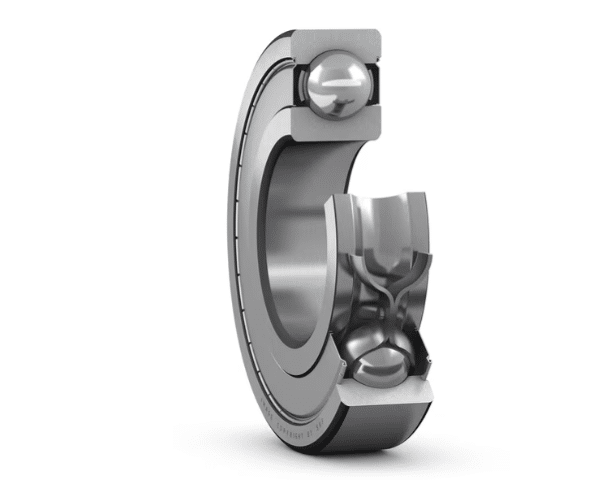

SKF 6009-2Z Deep Groove Ball Bearing
SKF 6009-2Z Deep Groove Ball Bearing
Product Description :
- It is a type of rolling-element bearing that is widely used in various applications due to its versatility and ability to handle radial and axial loads.
- Â They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
- The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
-
A Deep Groove Ball Bearing is a versatile and widely used bearing type designed to support radial and axial loads in both directions. Its simple design, consisting of inner and outer rings with deep raceway grooves and high-quality steel balls, provides low friction, high-speed capability, and reliable performance.
-
These bearings are manufactured from high-grade steel or stainless steel, ensuring durability, corrosion resistance, and long service life. They are commonly used in electric motors, pumps, gearboxes, automotive applications, and industrial machinery, making them an essential component in many mechanical systems.
Product Specification:
| Basic dynamic load rating | 22.1Â kN |
| Basic static load rating | 14.6Â kN |
| Reference speed | 20 000Â r/min |
| Limiting speed | 10 000Â r/min |
| Bore diameter | 45Â mm |
| Outside diameter | 75Â mm |
| Width | 16Â mm |
