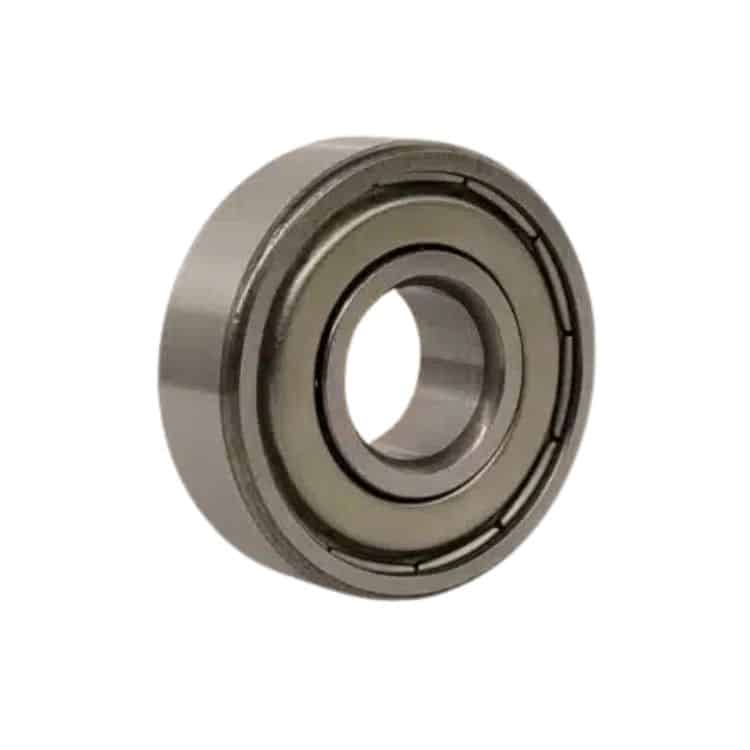

SKF 62052Z Ball Bearing
SKF 62052Z Ball Bearing
- It is a type of rolling-element bearing used in various mechanical applications to reduce friction and support rotational motion.
- It consists of several components, primarily the inner and outer races, the rolling balls, and often a cage or retainer to keep the balls evenly spaced.
How ball bearings work:
When a load is applied to a shaft or component connected to the inner race, the inner race rotates. This rotation causes the rolling balls to move, rolling between the inner and outer races. Because the rolling balls are in constant motion and in contact with both races, they create a rolling motion that significantly reduces friction compared to sliding friction.
Product Specification:
ID MM: 25 mm
OD MM: 52 mm
W MM: 15 mm
ID Inch: 0.9843 inches
OD Inch: 2.0472 inches
W Inch: 0.5906 inches
Bearing Material: Steel
Bearing Type: Single Row Bearing
Bearing Seal: Shielded On Both Sides
Bearing Cage: Steel
Bearing Clearance: C3 Radial Clearance
Bearing Tolerance: ABEC 1 / P0
Bearing Outer Ring: Without Snap Ring Or Flange
