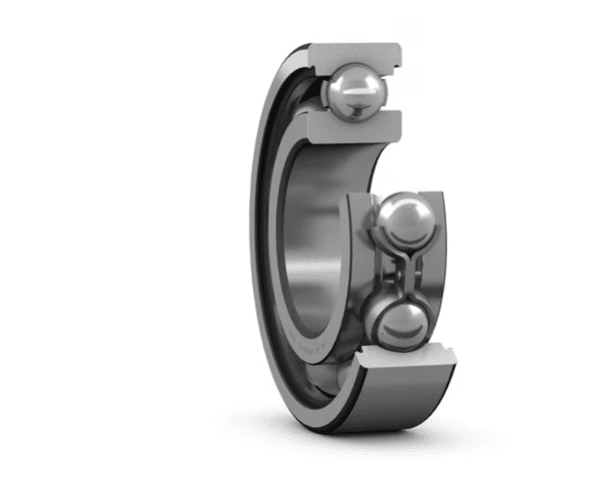

SKF 6217 Deep Groove Ball Bearing
SKF 6217 Deep Groove Ball Bearing
Product Description :
- It is a type of rolling-element bearing that is widely used in various applications due to its versatility and ability to handle radial and axial loads.
- Â They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
- The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
-
A Deep Groove Ball Bearing is a precision-engineered rolling element designed to support both radial and axial loads with smooth, low-friction operation. Its simple yet robust construction features deep raceway grooves that allow high-speed performance, reduced vibration, and long service life.
-
Manufactured from high-quality steel or stainless steel, these bearings offer excellent durability, wear resistance, and minimal maintenance requirements. Commonly used in motors, gearboxes, pumps, compressors, industrial machinery, and automotive applications, deep groove ball bearings ensure efficient power transmission and reliable operation under varying loads and speeds.
Product Specification:
| Bore diameter | 85Â mm |
| Outside diameter | 150Â mm |
| Width | 28Â mm |
| Basic dynamic load rating | 87.1Â kN |
| Basic static load rating | 64Â kN |
| Reference speed | 9 000Â r/min |
| Limiting speed | 5 600Â r/min |
