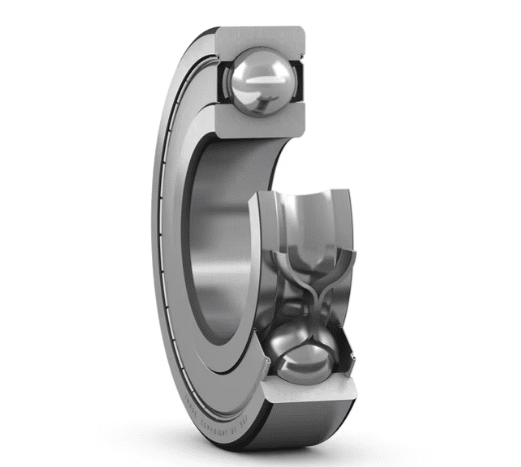

SKF 6308-2Z Deep Groove Ball Bearing
SKF 6308-2Z Deep Groove Ball Bearing
- It is a type of rolling-element bearing that is widely used in various applications due to its versatility and ability to handle radial and axial loads.
- Â They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
-
A Deep Groove Ball Bearing is a high-precision rolling-element bearing designed to support both radial and axial loads while providing smooth, low-friction rotation. Its deep raceway grooves allow for high-speed operation and enhanced stability, making it one of the most versatile bearings for various industrial and mechanical applications.
-
Manufactured from high-quality steel or stainless steel, deep groove ball bearings offer durability, corrosion resistance, and long service life. They are commonly used in electric motors, pumps, gearboxes, automotive components, and industrial machinery, ensuring reliable performance even under heavy-load and high-speed conditions.
Product Specification:
| Bore diameter | 40Â mm |
| Outside diameter | 90Â mm |
| Width | 23Â mm |
| Basic dynamic load rating | 42.3Â kN |
| Basic static load rating | 24Â kN |
| Reference speed | 17 000Â r/min |
| Limiting speed | 8 500Â r/min |
