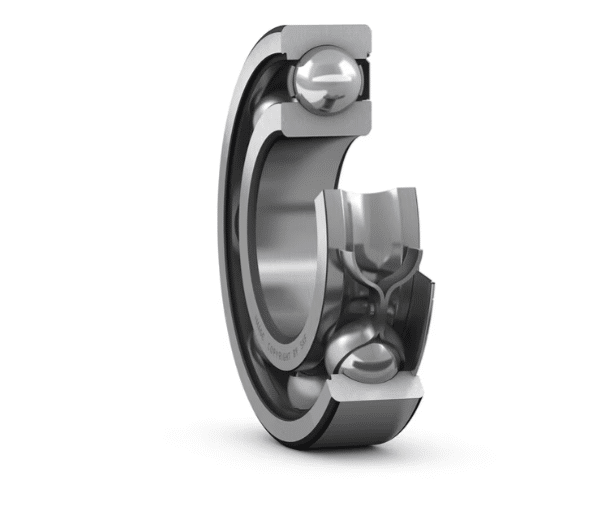

SKF 6308-Z Deep Groove Ball Bearing
SKF 6308-Z Deep Groove Ball Bearing
Product Description :
- It is a type of rolling-element bearing that is widely used in various applications due to its versatility and ability to handle radial and axial loads.
- Â They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
- The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
-
A Deep Groove Ball Bearing is a highly versatile rolling-element bearing designed to support radial and axial loads while ensuring smooth, low-friction operation. With a simple design featuring deep raceway grooves, these bearings allow for high-speed performance, low noise, and reduced maintenance requirements.
-
Manufactured from high-grade steel and precision-engineered for durability, deep groove ball bearings provide long service life and reliable performance even under demanding operating conditions. They are available in single-row and double-row configurations, with options for open, sealed, or shielded designs to suit various applications.
Product Specification:
| Basic dynamic load rating | 42.3Â kN |
| Basic static load rating | 24Â kN |
| Reference speed | 17 000Â r/min |
| Limiting speed | 11 000Â r/min |
| Bore diameter | 40Â mm |
| Outside diameter | 90Â mm |
| Width | 23Â mm |
