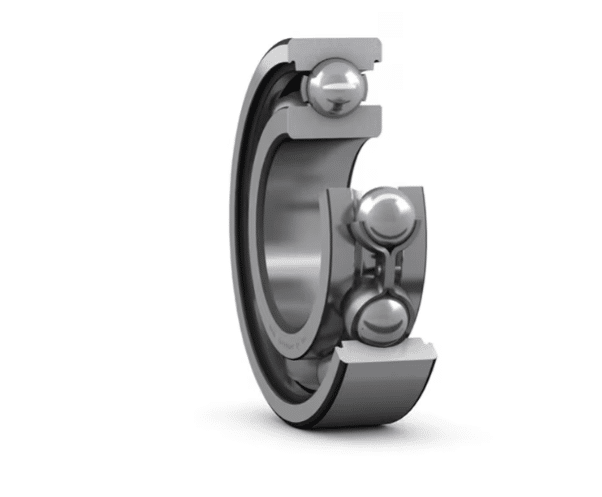

SKF 6316-C3 Deep Groove Ball Bearing
SKF 6316-C3 Deep Groove Ball Bearing
Product Description :
- It is a type of rolling-element bearing that is widely used in various applications due to its versatility and ability to handle radial and axial loads.
- They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
- The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
- Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Product Specification:
| Basic dynamic load rating | 130 kN |
| Basic static load rating | 86.5 kN |
| Reference speed | 8 500 r/min |
| Limiting speed | 5 300 r/min |
| Bore diameter | 80 mm |
| Outside diameter | 170 mm |
| Width | 39 mm |
