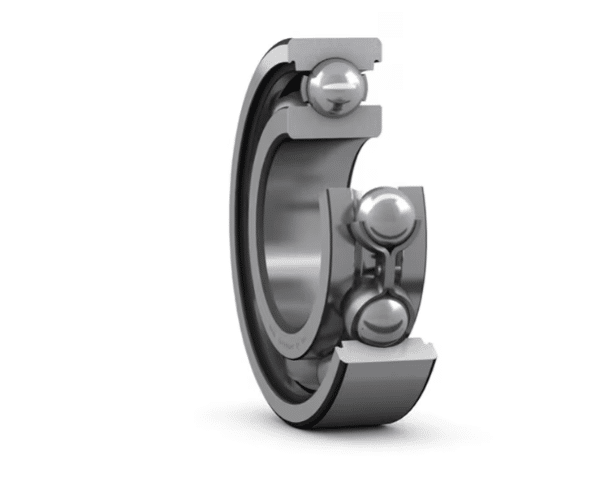

SKF 6316 C3 Deep Groove Ball Bearing
SKF 6316 C3 Deep Groove Ball Bearing
Product Description :
- It is a type of rolling-element bearing that is widely used in various applications due to its versatility and ability to handle radial and axial loads.
- Â They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
- The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
-
A Deep Groove Ball Bearing is a versatile rolling-element bearing designed to support radial and axial loads in both directions. Featuring deep raceway grooves and high-quality steel balls, it offers low friction, high-speed capability, and reliable performance in a wide range of applications.
-
Constructed from high-grade steel or stainless steel, deep groove ball bearings provide durability, corrosion resistance, and long service life. They are commonly used in electric motors, pumps, gearboxes, automotive systems, and industrial machinery, making them essential components in mechanical and industrial systems.
Product Specification:
| Basic dynamic load rating | 130Â kN |
| Basic static load rating | 86.5Â kN |
| Reference speed | 8 500Â r/min |
| Limiting speed | 5 300Â r/min |
| Bore diameter | 80Â mm |
| Outside diameter | 170Â mm |
| Width | 39Â mm |
