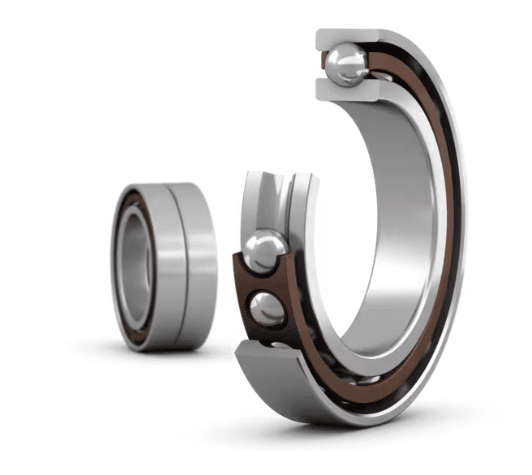

SKF 7014 ACD/P4ADGA Single Row Angular Ball Bearing
SKF 7014 ACD/P4ADGA Single Row Angular Ball Bearing
Product Description :
- It is a type of bearing designed to support both radial and axial loads. It consists of an inner ring, an outer ring, a set of balls, and a cage to hold the balls in place. The raceways are angled, allowing the bearing to accommodate axial loads in one direction.
- These bearings can handle both radial and axial loads, making them versatile for various applications. The axial load capacity depends on the angle of the raceway.
- These super-precision, high-speed E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate very high speeds.
- A Single Row Angular Contact Ball Bearing is a high-precision rolling element bearing designed to support combined radial and axial loads in one direction. Featuring an angled contact between the balls and raceways, it provides excellent stiffness, high-speed capability, and accurate rotational performance. Constructed from high-quality steel or ceramic materials, these bearings offer durability, low friction, and long service life, making them ideal for demanding industrial, automotive, and machinery applications. They are often used in pairs or arrangements to accommodate axial loads in both directions.
Product Specification :
| Bore diameter | 70Â mm |
| Outside diameter | 110Â mm |
| Width | 40Â mm |
| Contact angle | 25 ° |
| Basic dynamic load rating | 79.3Â kN |
| Basic static load rating | 86.5Â kN |
