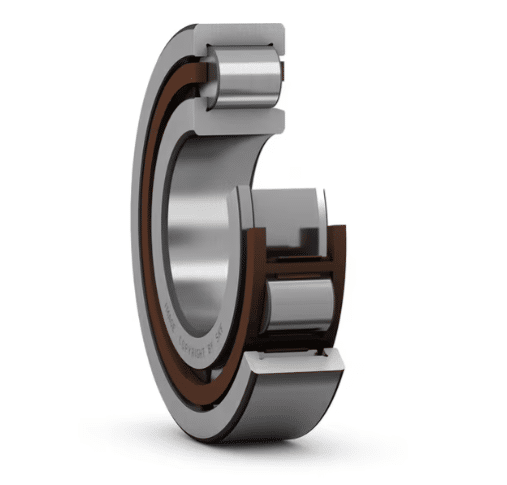

SKF NJ216ECP Cylindrical Roller Bearing

SKF NJ216ECP Cylindrical Roller Bearing

Product Description :

• It is a type of rolling-element bearing that utilizes cylindrical rollers to provide support for radial loads.
• These bearings are designed to offer high radial load capacity and are typically used in applications where heavy radial loads are encountered.
• It consist of an inner ring, an outer ring, cylindrical rollers, and a cage (or roller retainer).
• The rollers are guided by ribs on either the inner or outer ring, which helps to keep them in place and prevent them from slipping.
• They are essential components in many industrial and automotive applications where high radial load capacity and reliability are critical.
• Their robust design and versatility make them suitable for a wide range of operating conditions and environments.
• They are designed to accommodate high radial loads in combination with high speeds.
• Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

Product Specification :

• Basic dynamic load rating	160 kN
  Basic static load rating	166 kN
  Reference speed	5 300 r/min
  Limiting speed	5 600 r/min
