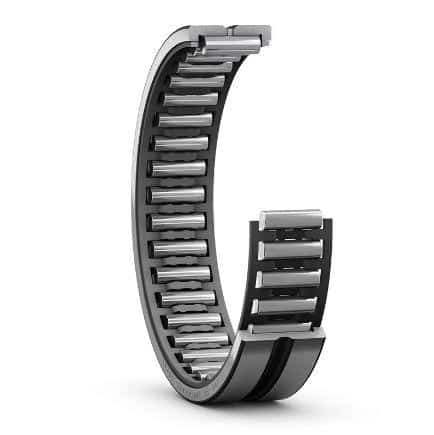

SKF NK 16/16 Needle Roller Bearing
SKF NK 16/16 Needle Roller Bearing
Product Description:
- It is a type of roller bearing designed to carry high radial loads with a small cross-sectional profile.
- They are characterized by their cylindrical rollers that have a much smaller diameter compared to their length, resembling needles.
- They are commonly used in various applications where space is limited, and high radial load-carrying capacity is required.
- The SKF NK 16/16 Needle Roller Bearing is a compact, high-load bearing solution designed for applications requiring maximum radial load capacity in minimal installation space.
- The SKF NK 16/16 Needle Roller Bearing features precisely engineered needle rollers that provide excellent load distribution, smooth rotation, and extended service life under demanding operating conditions.
- Manufactured by SKF, a global leader in bearing technology, the SKF NK 16/16 Needle Roller Bearing is built to deliver exceptional performance, reliability, and durability.
- Its slim cross-section design makes the SKF NK 16/16 Needle Roller Bearing ideal for use in gearboxes, transmissions, compressors, pumps, automotive components, industrial machinery, and power transmission systems.
Product Specification:
| Bore diameter of needle roller complement | 0.63Â in |
| Outside diameter | 0.945Â in |
| Width | 0.63Â in |
| Basic dynamic load rating | 2 630Â lbf |
| Basic static load rating | 3 440Â lbf |
| Reference speed | 22 000Â r/min |
| Limiting speed | 26 000Â r/min |
| Bearing part | Bearing without inner ring |
| Number of rows | 1 |
| Outer ring type | Machined (solid) |
| Aligning feature | Without |
| Cage | Sheet steel |
| Number of flanges, outer ring | 2 |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
