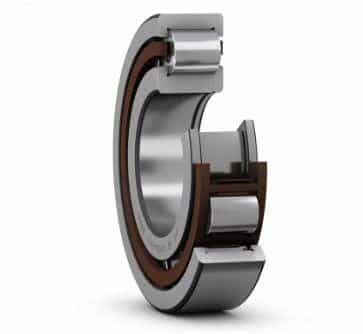

SKF NUP220ECP Cylindrical Roller BearingÂ
SKF NUP220ECP Cylindrical Roller Bearing
Product Description :
- It is a type of rolling-element bearing designed to provide high radial load capacity and moderate thrust load capacity.
- It consists of cylindrical rollers held in place by a cage or retainer, which allows them to roll independently between two rings – an inner ring (also known as the inner race) and an outer ring (also known as the outer race).
-
The SKF NUP220ECP Cylindrical Roller Bearing is a high-performance bearing designed for heavy-duty industrial applications requiring reliable axial and radial load support.
-
Engineered by SKF, a world-leading bearing manufacturer, the NUP220ECP model ensures durable, high-precision performance, making it ideal for motors, gearboxes, pumps, and mechanical drives.
-
This cylindrical roller bearing features a robust roller design that provides low friction, high load capacity, and extended service life, while reducing heat generation and wear.
-
The NUP220ECP bearing is particularly suited for high-speed and high-load applications, ensuring smooth rotation, minimal vibration, and superior operational reliability.
-
Constructed from premium bearing steel and precision-machined to SKF standards, the SKF NUP220ECP Cylindrical Roller Bearing offers high axial and radial stiffness, excellent fatigue resistance, and dependable performance even in demanding industrial environments. This makes it a preferred choice for heavy machinery, industrial equipment, and mechanical power transmission systems.
Product Specification :
| Bore diameter | 100Â mm |
| Outside diameter | 180Â mm |
| Width | 34Â mm |
| Basic dynamic load rating | 285Â kN |
| Basic static load rating | 305Â kN |
| Reference speed | 4 000Â r/min |
| Limiting speed | 4 500Â r/min |
| SKF performance class | SKF Explorer |
| Bearing part | Complete bearing |
| Axial displacement capability | None |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Number of flanges, outer ring | 2 |
| Number of flanges, inner ring | 1 |
| Loose flange | Inner ring loose flange |
| Radial internal clearance | CN |
