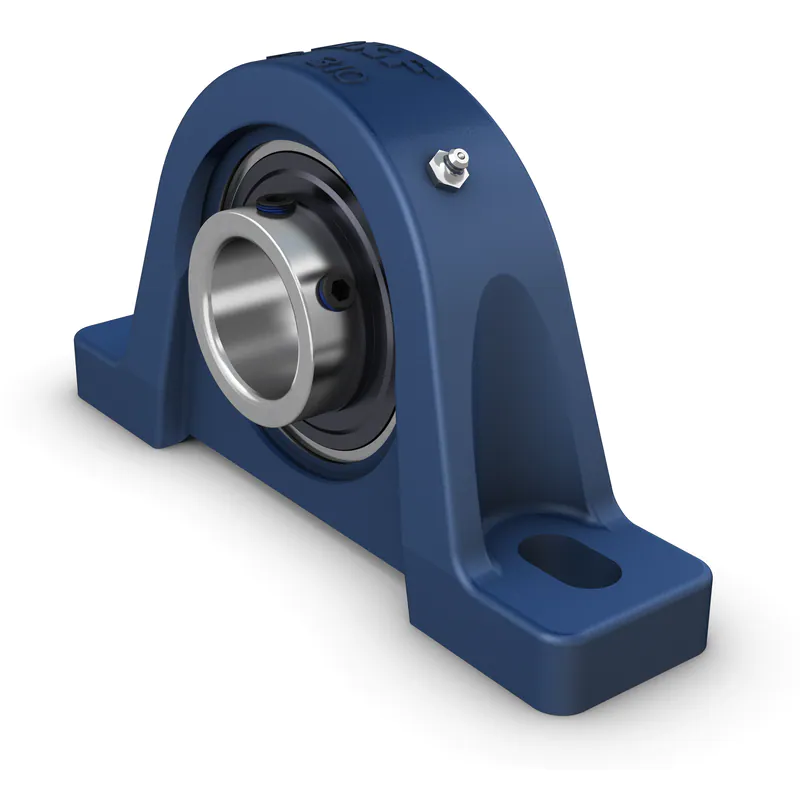

SKF P213 Pillow Block Bearing
SKF P213 Pillow Block Bearing
Product Description:
- It is a type of mounted bearing unit designed to provide support and secure a rotating shaft while allowing it to move linearly or pivotally within the bearing housing.
- These are available in various sizes and designs to accommodate different shaft diameters and loads
- They are commonly use in applications such as conveyor systems, agricultural machinery, industrial fans, pumps, and more, where a rotating shaft needs support and stability.
- The SKF P213 Pillow Block Bearing is a high-performance bearing solution designed to provide smooth rotation, reliable support, and long-lasting durability in a wide range of industrial and mechanical applications.
- As a genuine SKF pillow block bearing, the P213 model ensures precision alignment, reduced friction, and vibration-free operation for shafts and rotating equipment.
- Engineered from high-quality steel with a robust housing, the SKF P213 Pillow Block Bearing offers exceptional load-carrying capacity, corrosion resistance, and long service life. Its easy mounting design and durable construction make it ideal for conveyors, motors, fans, pumps, agricultural machinery, and heavy-duty industrial equipment.
Product Specification:
| Bearing width, total | 65.1Â mm |
| Centre distance between bolt holes | 203Â mm |
| Centre height (pillow block) | 76.2Â mm |
| Housing overall width | 72Â mm |
| Shaft diameter | 65Â mm |
| Basic dynamic load rating | 57.2Â kN |
| Basic static load rating | 40Â kN |
| Limiting speed | 2 350Â r/min |
| Note | Limiting speed with shaft tolerance h6 |
| Bore type | Cylindrical |
| Coating | Without |
| Fastening bolt hole type | Plain |
| Grease fitting | With |
| Housing type | Pillow block |
| Lubricant | Grease |
| Material, bearing | Bearing steel |
| Material, housing | Cast iron |
| Number of bolt holes for fasteners | 2 |
| Relubrication hole | With |
| Retaining feature, inner ring | Set screws |
| Rubber seating ring | Without |
| Sealing type | Contact, standard |
| Sealing, bearing | Seal and flinger on both sides |
| Sealing, unit | Without |
