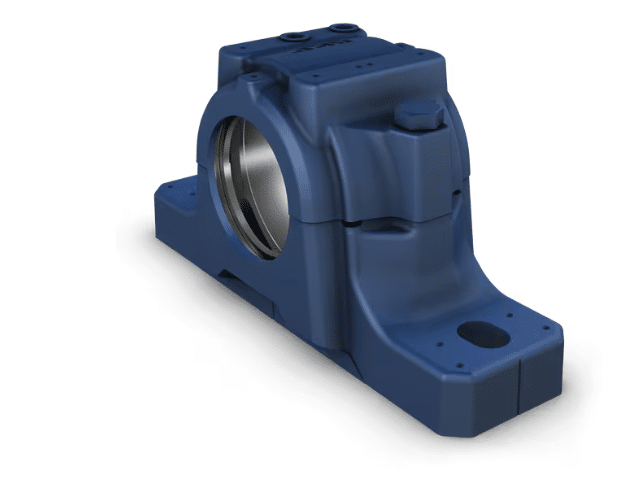

SKF SNL513-611 Ball Bearing
SKF SNL513-611 Ball Bearing
Product Description:
- It is a type of rolling-element bearing that uses balls to reduce friction between two moving parts. They are mechanical components commonly found in various machines and equipment to enable smooth rotation and reduce friction in applications like automotive engines, industrial machinery, and household appliances. These are one of the most common types of bearings due to their efficiency and durability.
Product Specification:
- Housing configuration-Two-piece
- Mounting arrangement-Through shaft/Shaft end
- Number of bolt holes for fasteners-2
- Material, housing-Cast iron
- Bearing housing seal type-Without
- Housing lubrication feature/possibility-Grease
- Housing type- Plummer/pillow block
- Diameter of bearing seat- 120 mm
- Width of bearing seat- 51 mm
- Centre height (pillow block)- 80 mm
- Centre distance between bolt holes- 230 mm
- Attachment bolt diameter-16 mm
