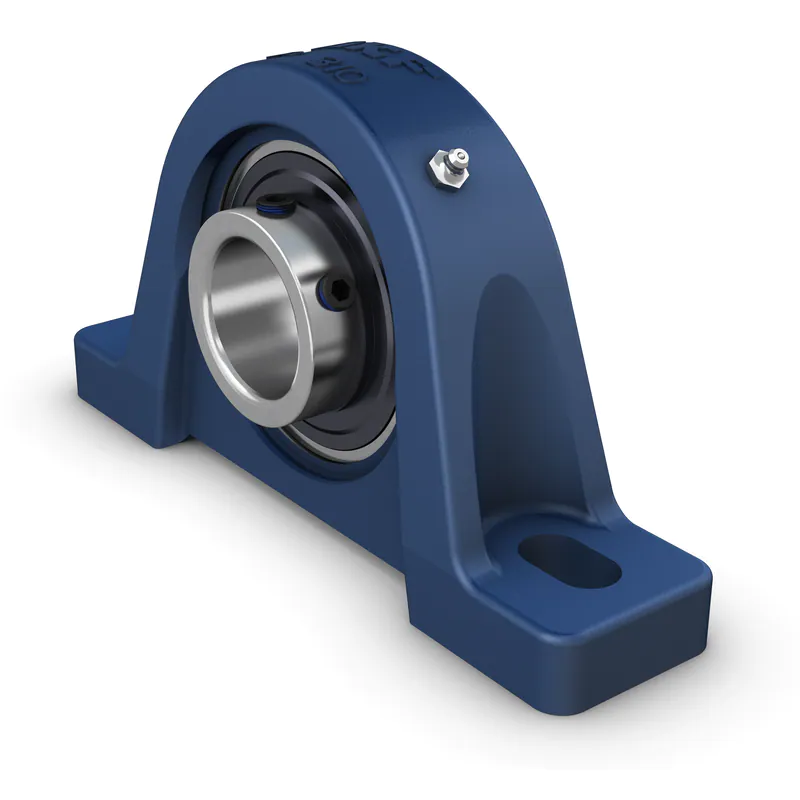

SKF UCP208 Ball Bearing
SKF UCP208 Ball Bearing
Product Description
- It is a type of rolling-element bearing that uses balls to reduce friction between two moving parts.
- They are mechanical components commonly found in various machines and equipment to enable smooth rotation and reduce friction in applications like automotive engines, industrial machinery, and household appliances.
- These are one of the most common types of bearings due to their efficiency and durability.
Product Specification:
| Bearing width, total | 49.2Â mm |
| Centre distance between bolt holes | 137Â mm |
| Centre height (pillow block) | 49.2Â mm |
| Housing overall width | 49Â mm |
| Shaft diameter | 40Â mm |
| Basic dynamic load rating | 32.5Â kN |
| Basic static load rating | 20Â kN |
| Limiting speed | 3 750Â r/min |
| Bore type | Cylindrical |
| Coating | Without |
| Fastening bolt hole type | Plain |
| Housing type | Pillow block |
| Lubricant | Grease |
| Material, bearing | Bearing steel |
| Material, housing | Cast iron |
| Number of bolt holes for fasteners | 2 |
| Relubrication hole | With |
| Relubrication nipple | With |
| Retaining feature, inner ring | Set screws |
| Rubber seating ring | Without |
| Sealing type | Contact, standard |
| Sealing, bearing | Seal and flinger on both sides |
| Sealing, unit | Without |
