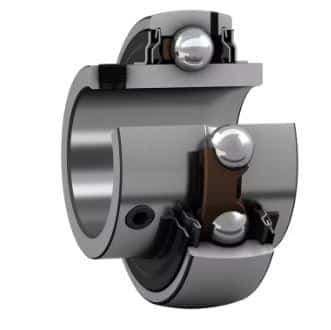

SKF YAR2042RF Bearing
SKF YAR2042RF Bearing
Product Description:
- These are mechanical components that are used to reduce friction and facilitate smooth motion between two or more moving parts.
- They play a critical role in various machines and mechanical systems, allowing for the efficient transfer of loads and the conversion of rotational motion into linear motion or vice versa.
- Bearings come in different types and designs, each suited for specific applications.
Product Specification:
| Width, outer ring | 14 mm |
| Width, total | 31 mm |
| Bore diameter | 20 mm |
| Outside diameter | 47 mm |
| Width, inner ring | 31 mm |
| Basic dynamic load rating | 12.7 kN |
| Basic static load rating | 6.55 kN |
| Limiting speed | 5 000 r/min |
| Note | Limiting speed with shaft tolerance h6 |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Coating | Without |
| Inner ring extension | On both sides |
| Lubricant | Grease |
| Material, bearing | Bearing steel |
| Outer ring type | Spherical |
| Relubrication feature | With |
| Retaining feature, inner ring | Set screws |
| Rolling elements | Balls |
| Rubber seating ring | Without |
| Sealing | Seal and flinger on both sides |
| Sealing type | Contact, multiple |
