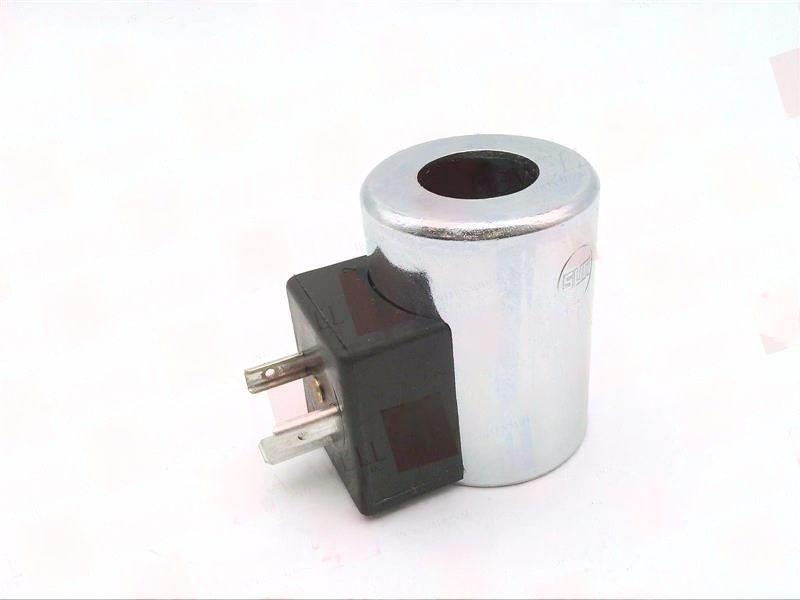

Sun Hydraulics 770224 Coil
Sun Hydraulics 770224 Coil
Product Description:
- The structure of a coil allows it to have various functions depending on the type of coil and its application.
- It is a specific component used in hydraulic systems.
- They are often used to control the flow of hydraulic fluid by actuating valves or other components.
- It is a wound or looped wire, often made of conductive material like copper, that forms a helical structure.
- Coils are used in many different applications in electrical and mechanical systems due to their ability to generate magnetic fields, store energy, or provide inductance.
Product Specification:
-
Maximum Ambient Temperature: 122 °F
-
Maximum Coil Temperature at 68ºF (20ºC) Ambient: 218ºF (105ºC)
-
Power Consumption (cold) – at rated voltage: 22 watts
-
Voltage/Frequency: 24 VDC
-
Operating Voltage Range: +/- 10% nominal
-
Duty Cycle Rating: 100 %
-
Connector: ISO4400 – EN/DIN175301-803, Form A (ISO/DIN 43650) 3-pin
-
Connector Environment Rating: IP65/IP67
-
Solenoid Tube Diameter: .75 in.
-
Coil Nut Torque: 4.5 lbf in.
-
Model Weight: 8.2 oz.
