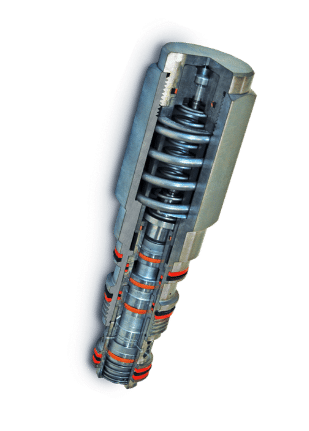

Sun Hydraulics RBAP-MAV Relief Valve
Sun Hydraulics RBAP-MAV Relief Valve
Product Description :
- It is a critical component in hydraulic systems designed to protect the system from overpressurization.The primary function of a relief valve is to limit the maximum pressure in a hydraulic system by diverting excess fluid when the pressure exceeds a predetermined level. This helps prevent damage to the system components due to excessive pressure.
- These valves used to protect hydraulic components from pressure transients.
- The seals on the adjust screw are exposed to system pressure which means this valve can only be adjusted when the pressure is removed. The setting procedure is; check the setting, remove the pressure, adjust the valve, check the new setting.
Product Specifiation :
| Capacity | .25 gpm |
| Maximum Operating Pressure | 5000 psi |
| Maximum Valve Leakage at Reseat | 1.5 in³/min. |
| Manual Override Force Requirement | 10 lbs/1000 psi @ Port 1 |
| Reseat | >85% of setting |
| Solenoid Tube Diameter | .75 in. |
| Valve Hex Size | 7/8 in. |
| Valve Installation Torque | 20 – 25 lbf ft |
