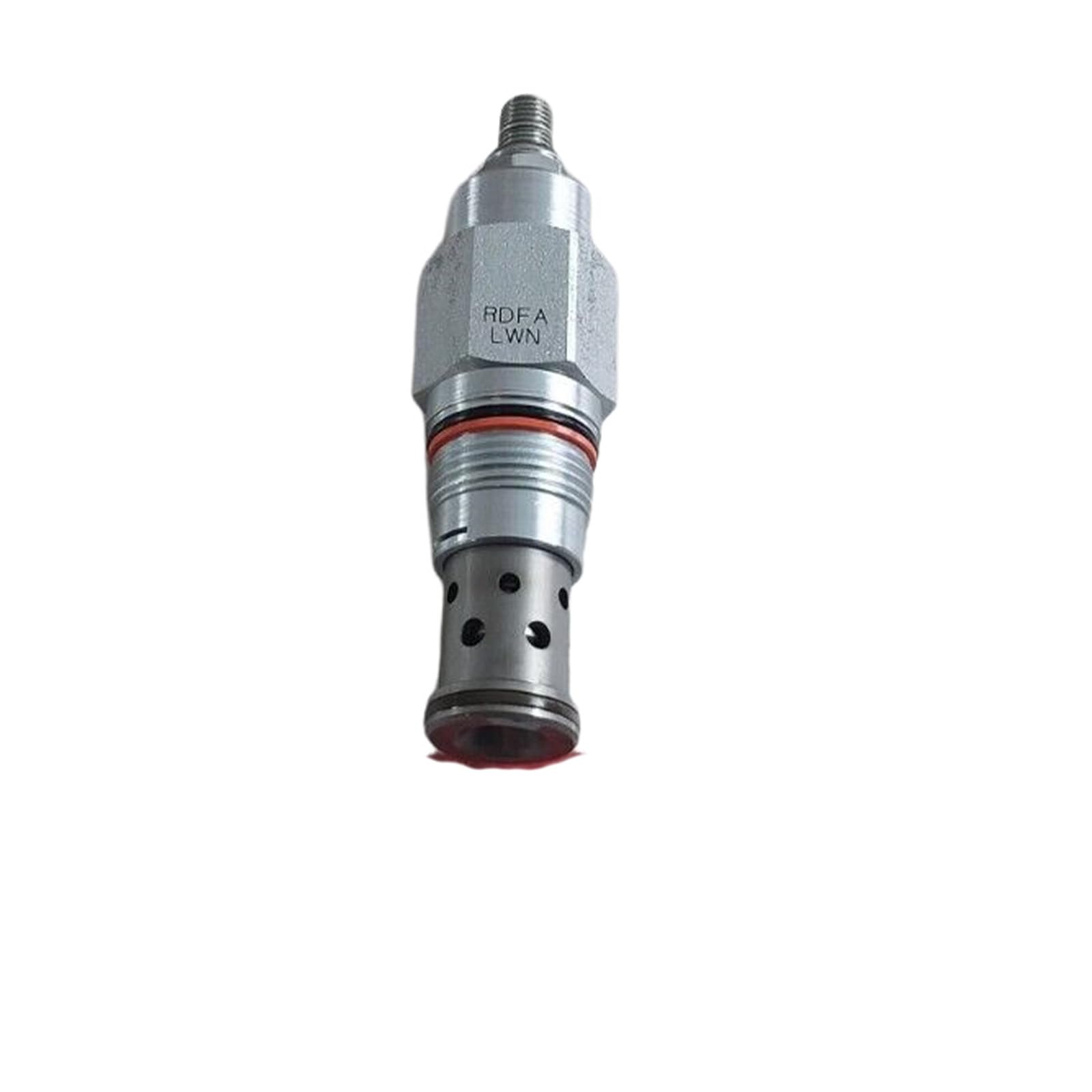

Sun Hydraulics RDFALWN Relief Valve
Sun Hydraulics RDFALWN Relief Valve
Product Description :
- It is a critical component in hydraulic systems designed to protect the system from overpressurization.The primary function of a relief valve is to limit the maximum pressure in a hydraulic system by diverting excess fluid when the pressure exceeds a predetermined level. This helps prevent damage to the system components due to excessive pressure.
- These valves used to protect hydraulic components from pressure transients.
- The seals on the adjust screw are exposed to system pressure which means this valve can only be adjusted when the pressure is removed. The setting procedure is; check the setting, remove the pressure, adjust the valve, check the new setting.
Product Specifiation :
| Capacity | 50 gpm |
| Maximum Operating Pressure | 5000 psi |
| Factory Pressure Settings Established at | 4 gpm |
| Maximum Valve Leakage at Reseat | 10 drops/min. |
| Response Time – Typical | 2 ms |
| Reseat | >90% of setting |
| Adjustment – No. of CW Turns from Min. to Max. setting | 6 |
| Valve Hex Size | 1 1/8 in. |
| Valve Installation Torque | 45 – 50 lbf ft |
| Adjustment Screw Internal Hex Size | 5/32 in. |
| Locknut Hex Size | 9/16 in. |
| Locknut Torque | 80 – 90 lbf in. |
