Sun Hydraulics RVCDLAN Relief Valve

Inquire for shipping charges

Brand : Sun Hydraulics

P/N : RVCDLAN

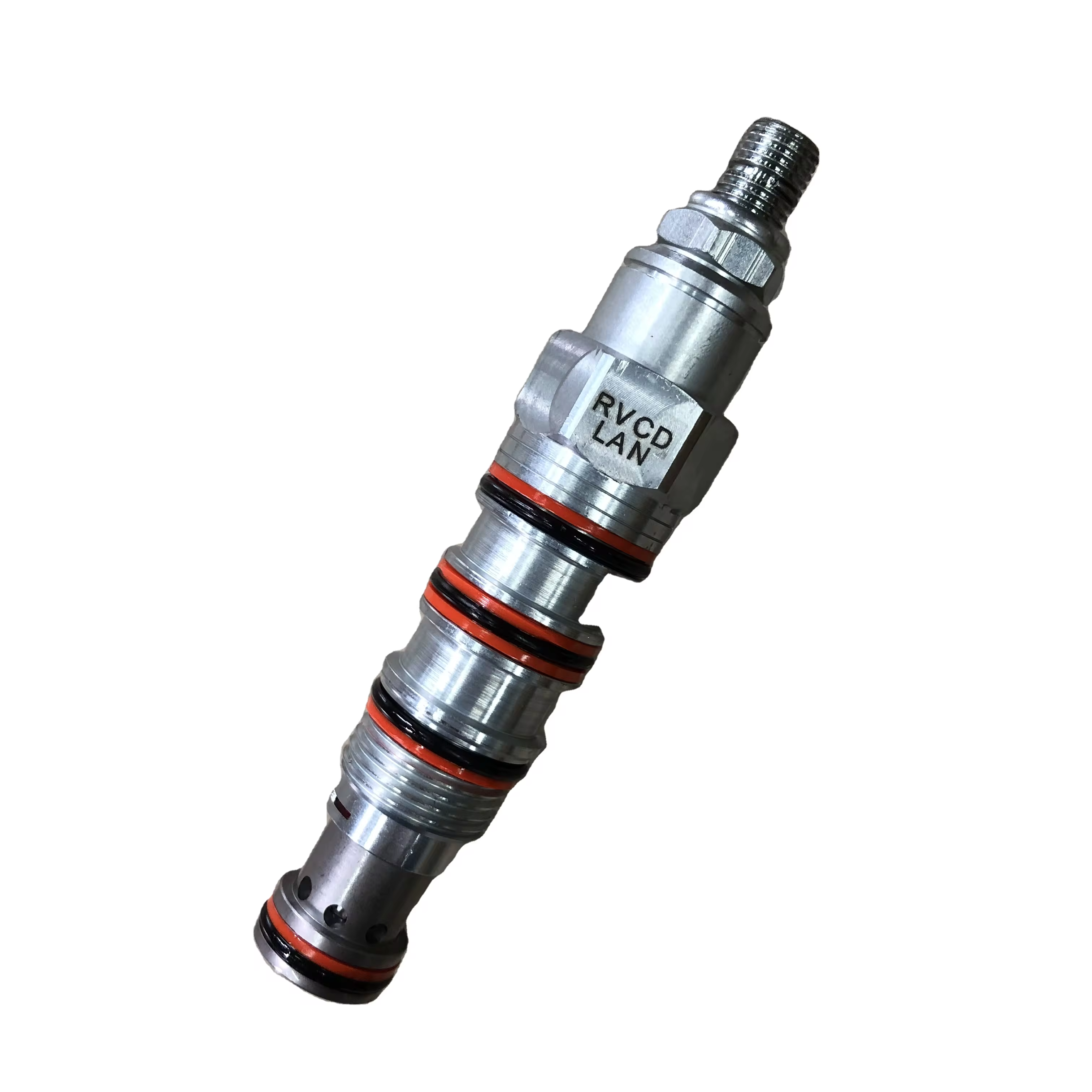

Sun Hydraulics RVCDLAN Relief Valve

Sun Hydraulics RVCDLAN Relief Valve

Product Description :

  • It is a critical component in hydraulic systems designed to protect the system from overpressurization.The primary function of a relief valve is to limit the maximum pressure in a hydraulic system by diverting excess fluid when the pressure exceeds a predetermined level. This helps prevent damage to the system components due to excessive pressure.
  • They typically consist of a spring-loaded valve mechanism. When the system pressure rises above the set pressure (known as the cracking pressure or set point), the valve opens to allow fluid to flow out of the system or back to the reservoir. This action relieves the excess pressure and maintains the system pressure within safe limits.

Product Specifiation :

Capacity 15 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 4 gpm
Control Pilot Flow 7 – 10 in³/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 2 in³/min.@1000 psi
Response Time – Typical 10 ms
Adjustment – No. of CW Turns from Min. to Max. setting 5
Valve Hex Size 7/8 in.
Valve Installation Torque 30 – 35 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 – 90 lbf in.
