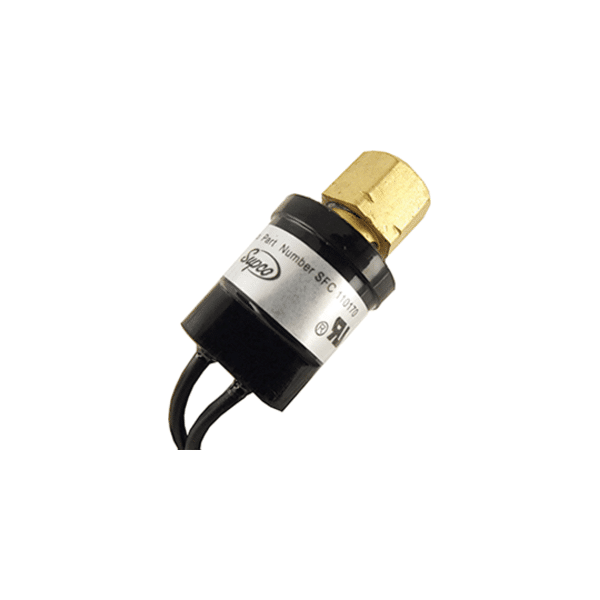

Supco SFC110170 Pressure Switch
Supco SFC110170 Pressure Switch
Product Description :
- It is a mechanical device used to detect changes in pressure and actuate electrical contacts to control electrical circuits. It plays a crucial role in various applications where monitoring and controlling pressure levels are essential.
- The main component is a sensing element that responds to changes in pressure.This sensing element can be a diaphragm, bourdon tube, bellows, or piston depending on the design and application.
- They are housed in an enclosure that protects the internal components from environmental factors such as dust, moisture, and mechanical damage.
- They are essential devices used in a wide range of applications to monitor and control pressure levels, providing critical functionality for maintaining equipment operation, safety, and efficiency in various industries and systems.
Product Specification :
-
Maximum FLA: 5.8 Amps @ 120VAC Maximum FLA: 2.9 Amps @ 240VAC Maximum LRA: 34.8 Amps @ 120VAC Maximum LRA: 17.4 Amps @ 240VAC Ambient Temperature: -22°F to 275°F (-30°C to 135°C) Fluid Temperature: -4°F to 302°F (-20°C to 150°C) Burst Pressure: 5000 PSI Close PSI: 170 PSI Open PSI: 110 PSI Tolerance: +/- 15 PSI DC Voltage: 6VDC/12VDC/36VDC
