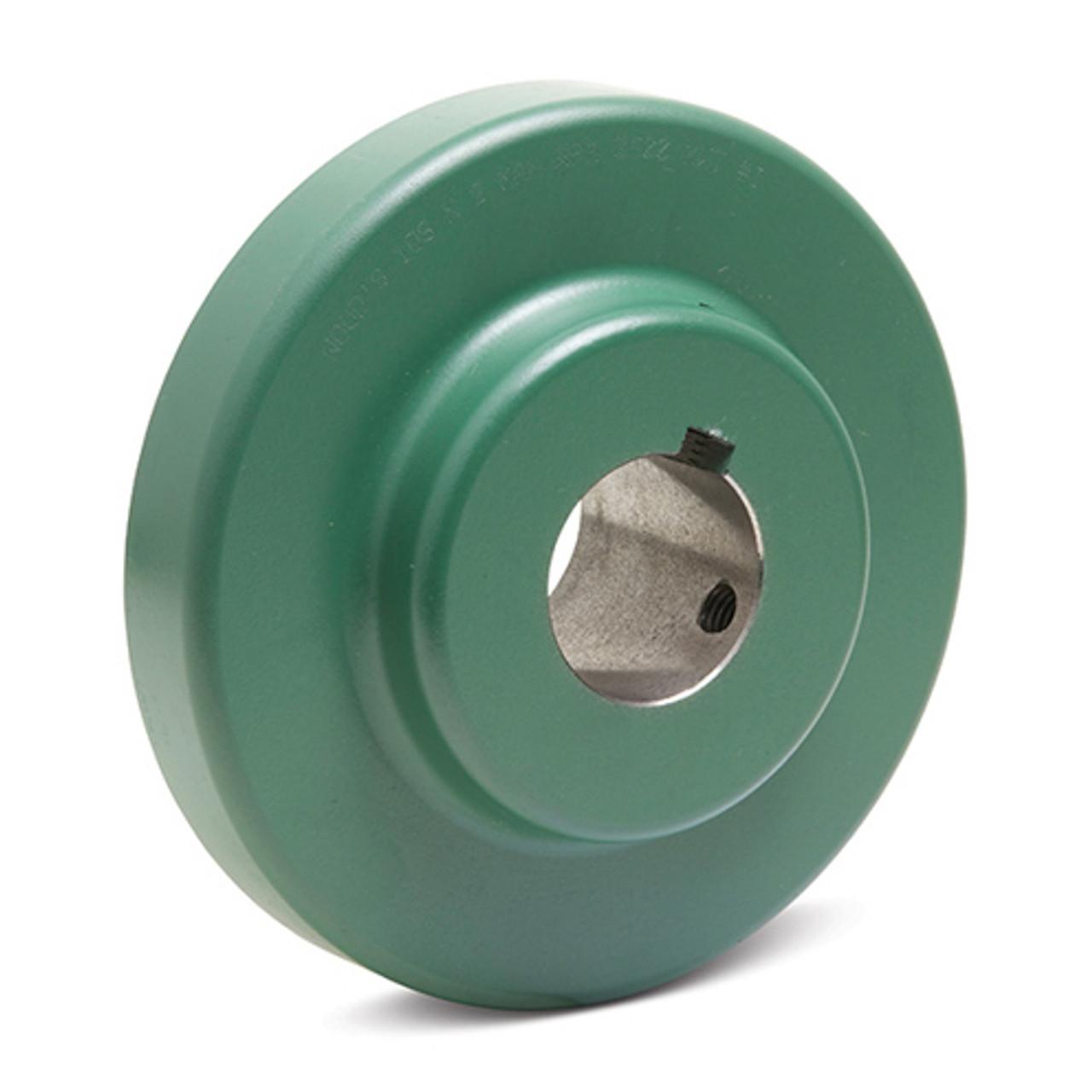

Sure-Flex 12S218 Flange

Sure-Flex 12S218 Flange

Sure-Flex 12S218 Flange

Product Description:

• A flange is a mechanical component used to connect two pieces of equipment or piping together, often to create a strong, leak-proof seal.
• Flanges are typically circular, with holes around the perimeter for bolts to securely fasten the components.
• Flanges are widely used in piping, plumbing, and mechanical systems where two parts need to be joined or disconnected for maintenance or repair.
• A flange is a protruding rim, edge, collar, or flat, circular disc with evenly spaced holes that is used to connect and join two or more pipes, valves, or other equipment in a piping system.
• Flanges serve several important functions in various industries, particularly in the field of fluid and gas handling.
• Flanges are an integral part of modern industrial and commercial piping systems, and their selection and proper installation are crucial for the safe and reliable operation of these systems.
• They play a key role in ensuring leak-free connections, ease of maintenance, and adaptability in fluid handling applications.

Product Specification:

• Product Family: Sure-Flex Type S, BTS Flange
• Coupling Size: 12
• Material Type: High Strength Cast Iron
• Bore Size: 2 1/8″
• Max RPM: 2800
• Setscrew Length: 1 1/4 in
• Outside Diameter (D): 10 in
• SF Flange Length (T): 1 11/16 in
• SF Hub Diameter (H): 5 3/4 in
• Length Through Bore (C): 4 in
• Set Screw Distance (S): 3/4 in
• SF Hub Length (E): 1-9/32 in
• Bore Tolerance: +.0005 to +.0020 in
• Setscrew Size, Location: 1/2-13 UNC, One over KS and @ 90 Degrees
• Setscrew Torque Requirement: 50 in-lb
• Parallel Misalignment [Max]: 0.032 (in) with EPDM/Neoprene Sleeves and 0.025 (in) with Hytrel Sleeves
• Angular Gap Misalignment [Max]: 0.175 (in) with EPDM/Neoprene Sleeves and 0.042 (in) with Hytrel Sleeves
• Angular Misalignment [Max]: 1° with EPDM/Neoprene Sleeves and 1/4° with Hytrel Sleeves
• Component WR²: 1.9395 lbs ft²
• Bore Tolerance: +.0005 to +.0020 in
• Torque Rate: 9,360 (in-lbs) with EPDM or Neoprene sleeve; 31,500 (in-lbs) with Hytrel sleeve
• Keyseat Size: 1/2 in x 1/4 in
• Torque: 9,360 in-lb with EPDM or Neoprene sleeve, 31,500 in-lb with Hytrel sleeve
• Component Weight: 26.6 lbs
• Component Weight: 12 kg
