SKF 32312 Tapered Roller Bearing

Inquire for shipping charges

Brand: SKF

P/N: 32312

Categories: ,

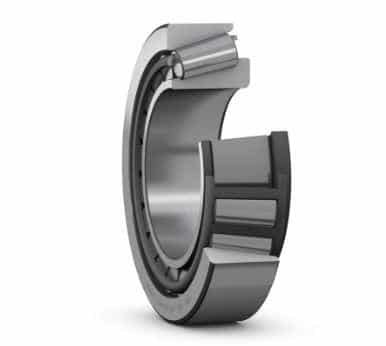

SKF 32312 Tapered Roller Bearing

SKF 32312 Tapered Roller Bearing

Product Description:

  • It is a type of rolling element bearing that is designed to support radial and axial loads in one direction.
  • It consists of a single inner ring (cone), an outer ring (cup), tapered rollers, and a cage.
  • These bearings are commonly use in various applications, including automotive, industrial machinery, and equipment.
  • They are conical in shape, with the large end (the base) near the outer ring and the small end (the apex) near the inner ring.
  • This tapered design allows for efficient distribution of both radial and axial loads.

Product Specification:

Bore diameter 60 mm
Outside diameter 130 mm
Width, total 48.5 mm
Width, inner ring 46 mm
Width, outer ring 37 mm
Contact angle 12.953 °
Basic dynamic load rating 282 kN
Basic static load rating 290 kN
Reference speed 4 000 r/min
Limiting speed 5 300 r/min
SKF performance class SKF Explorer
Bearing part Complete bearing
Number of rows 1
Locating feature, bearing outer ring None
Bore type Cylindrical
Cage Sheet metal
