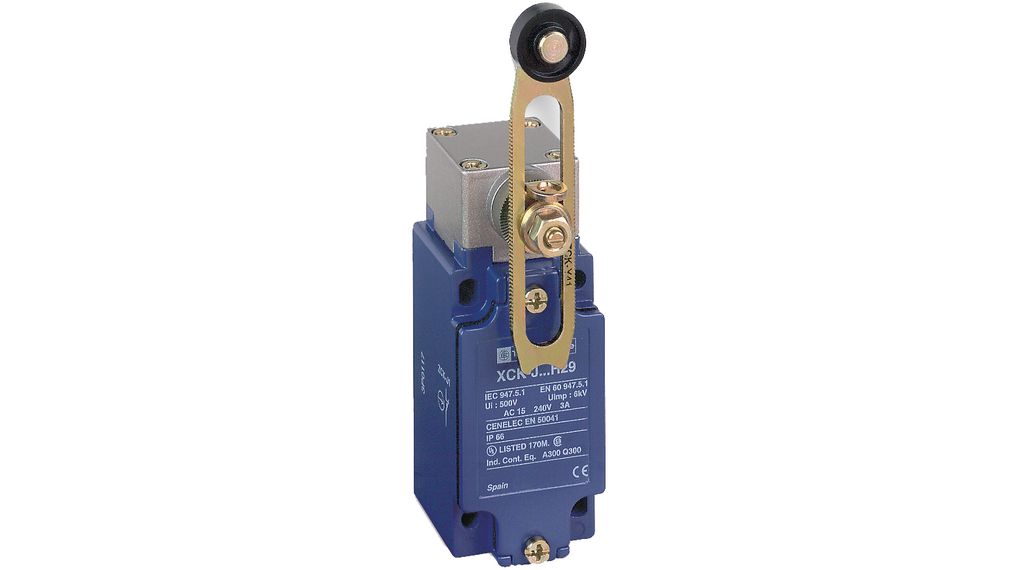

Telemecanique Sensors XCKJ10541H29 Limit Switch
Telemecanique Sensors XCKJ10541H29 Limit Switch
Product Description :
- It is a type of electromechanical device used in industrial and automation systems to detect the presence or absence of an object, or to monitor the position of a moving part. It acts as a control device to trigger or interrupt the operation of machinery based on predefined positions or limits.
- Detects when an object reaches a specific position or limit. Provides control signals to start, stop, or alter the operation of machinery, and ensures safety by preventing over-travel or collisions.
-
A Limit Switch is an electromechanical device used to detect the presence, absence, or movement limit of an object in industrial and automation systems. It operates by making or breaking an electrical connection when a mechanical actuator is engaged by the moving part.
-
Built with high precision, limit switches provide reliable position sensing, control, and safety interlocking in machinery and equipment. They are designed to withstand harsh industrial environments, offering excellent durability, repeatability, and long service life.
Product Specification :
- Body type – Fixed
- Head type – Rotary head
- Material – Metal
- Body material – Zamak
- Head material – Zamak
- Fixing mode – By the body
- Movement of operating head – Rotary
- Type of operator – Spring return roller lever thermoplastic variable length
- Type of approach – Lateral approach, 1 or 2 programmable direction
- Cable entry – 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm
- Number of poles – 2
- Contacts type and composition – 1 NC + 1 NO
- Contact operation – Snap action
