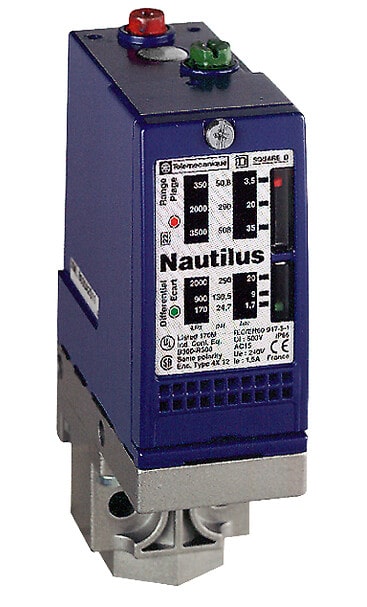

Telemecanique XMLBM05A2S11 Pressure Switch
Telemecanique XMLBM05A2S11 Pressure Switch
Product Description :
- It is a mechanical or electronic device that monitors pressure levels in a system and activates or deactivates electrical contacts or circuits based on preset pressure thresholds.
- They are commonly used in various applications to control and protect equipment by detecting changes in pressure and initiating appropriate responses.It is installed within a system where pressure needs to be monitored, such as a pneumatic or hydraulic system, an air compressor, a water pump, or a HVAC system.
- It is pre-set or adjustable to trigger at specific pressure levels. These pressure thresholds can be high-pressure or low-pressure settings, depending on the application requirements.It play a critical role in maintaining the proper functioning, safety, and efficiency of system.
Product Specification :
- Fluid connection type- G 1/4 (female) conforming to ISO 228
- Electrical connection –Screw-clamps terminals, 1 x 0.5…2 x 2.5 mm², 1 connector Pg 13
- AWG gauge- AWG 20…AWG 14
- Cable entry- Cable gland 9-13 mm
- Contacts type and composition- 1 C/O
