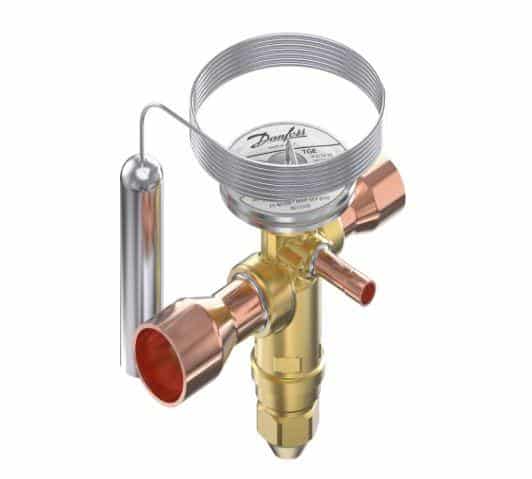

Danfoss 067N3162 Thermostatic Expansion Valve
Danfoss 067N3162 Thermostatic Expansion Valve
- A thermostatic expansion valve is a key component in refrigeration and air conditioning systems. Its primary function is to control the flow of refrigerant into the evaporator coil based on the temperature of the refrigerant leaving the coil. The goal is to maintain a specific superheat level in the evaporator, ensuring efficient heat transfer and optimal system performance. Similar https://kdeqco.com/product/thermostatic-valve-element-39902382/
Product Specification:
| Body material | Brass |
| Bulb temperature max. [ºC] | 100 °C |
| Bulb temperature max. [ºF] | 210 °F |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Copper |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | SOLDER, ODF |
| Equalization size [in] | 1/4 IN |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Identical product | 067N3182 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 7/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 68 kW |
| Orifice capacities [TR] | 19 tons |
| Orifice size | 16 |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1 1/8 in |
