Timken HH224346/HH224310 Taper Roller Bearing
Timken HH224346/HH224310 Taper Roller Bearing
Product Description:
- This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring).
- It is a type of rolling element bearing designed to handle both radial and axial loads.
- The main distinguishing feature of taper roller bearings is their tapered rollers.
- It consist of an inner ring, an outer ring, tapered rollers, and a cage that holds the rollers in position.
- The inner and outer rings are designed with matching tapers that allow the rollers to guide themselves along the surfaces of the rings during rotation.
Product Specification:
| Manufacturer | Â Timken |
|---|---|

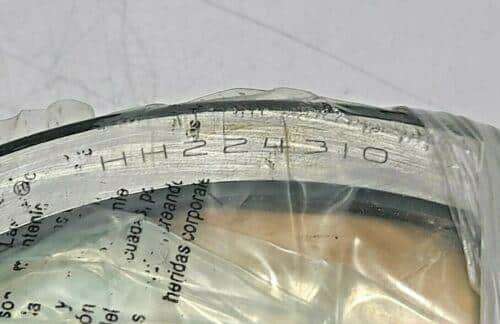

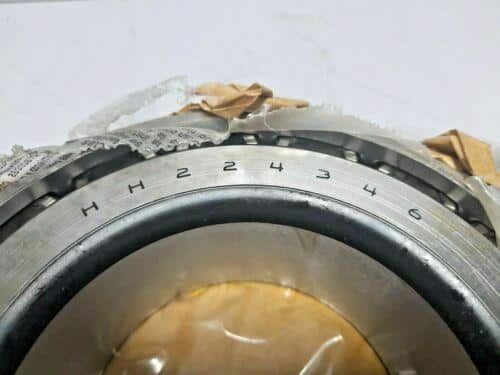

| Inner Cone Code -HH224346Outer Cup Code -HH224310Seals/Shields | None |
| Dimensions (Metric) | 114.300×212.725×66.675mm |
| (Inch) | 4.5000X8.3750X2.6250 |
| Inside Diameter (d) | 114.300mm / 4.5000″ |
| Outside Diameter (D) | 212.725mm /8.3750″ |
| Cup Width (C) | 53.975mm / 2.1250″ |
| Width (B) | 66.675mm / 2.6250″ |
