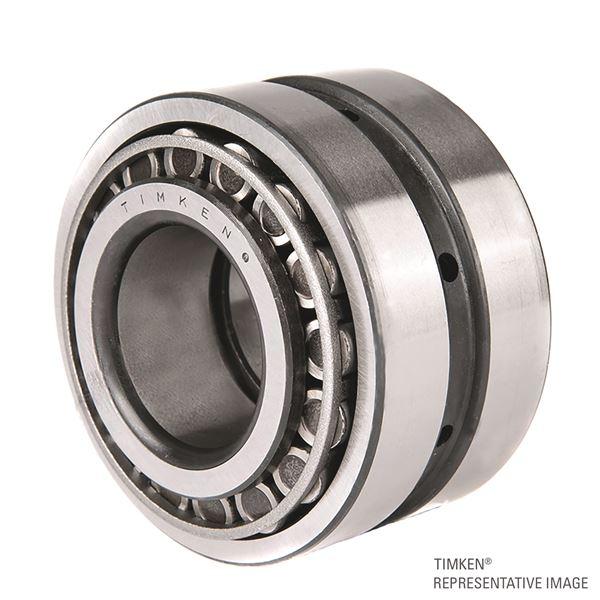

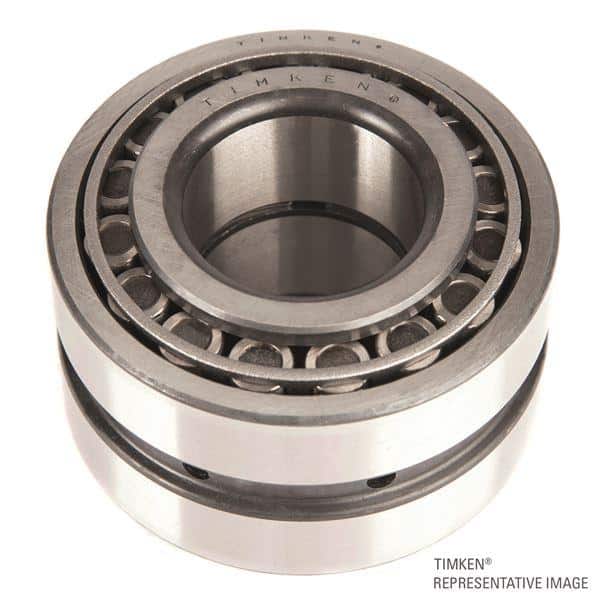

Timken LM241110D Tapered Roller Bearings
Timken LM241110D Tapered Roller Bearings
Product Description:

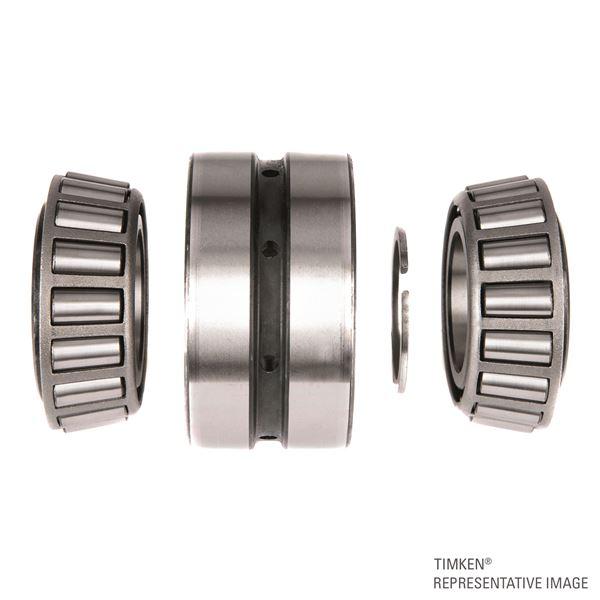

- It consist of a bearings cone and bearings cup which belong in the single row tapered roller bearings class.
- These have the advantage of combined load capacity in both radial and axial environments.
- Compared to other of the same size, these have a relatively longer working life.
- They are widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and a host of other industries.
- This taper allows the rollers to handle both radial and axial loads by distributing them along the length of the rollers and the bearing’s inner and outer races.
Product Specification:
| Series: | LM241100 |
| Cone Part Number : | LM241149NW |
| Cup Part Number: | LM241110D |
| Design Unit : | Inch |
| Bearing Weight: | 33.11 lb |
| Cage Material:Â | Stamped Steel |
Dimension:
| d-Bore: | 8 in203.2 mm |
| D- Cup Outer Diameter | 10.875 in276.225 mm |
| B- Cone Width: | 1.875 in47.625 mm |
| C- Double Cup Width : | 2.875 in73.025 mm |
| T- Bearing Width across Cones : | 3.75 in95.25 mm |
