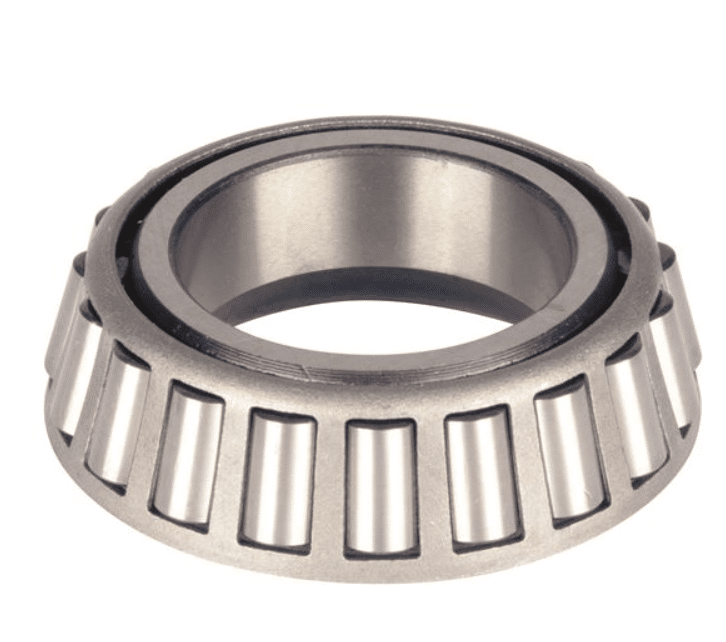

Timken NA87700SW Tapered Bearings
Timken NA87700SW Tapered Bearings
Product Description :
- They are a type of rolling element bearing that can support high radial and axial (thrust) loads. They are designed to handle both thrust and radial forces because of their tapered inner and outer raceways.
- The rolling elements (tapered rollers) and raceways (tapered inner and outer rings) are designed to handle both radial and axial loads simultaneously. This design allows for efficient distribution of load across the bearing.
- They can be adjusted to achieve specific preloads or clearances, which helps in optimizing the performance and longevity of the bearing in various applications.
- This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Product Specification :
| R – Cone Backface “To Clear” Radius3 | 0.14 in3.5 mm |
db – Cone Backface Backing Diameter |
7.87 in200 mm |
Ab – Cage-Cone Frontface Clearance |
-0.32 in-8.128 mm |
Aa – Cage-Cone Backface Clearance |
-0.11 in-2.794 mm |
| a – Effective Center Location4 | 0.15 in3.81 mm |
