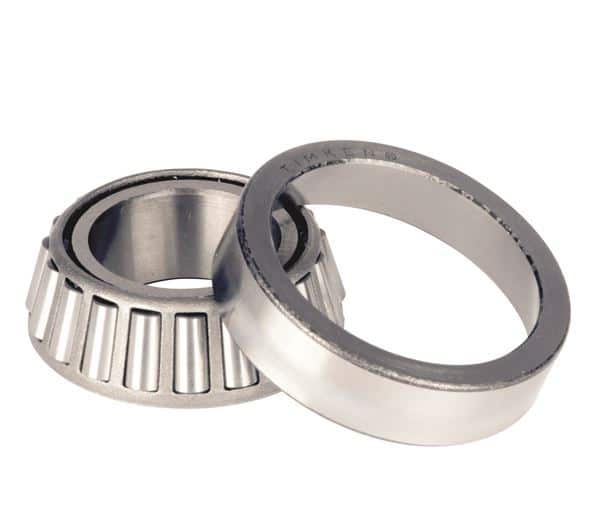

Timken TS 98788 Tapered Roller Bearings
Timken TS 98788 Tapered Roller Bearings
Product Description :
- They are a type of rolling element bearing that can support high radial and axial (thrust) loads. They are designed to handle both thrust and radial forces because of their tapered inner and outer raceways.
- The rolling elements (tapered rollers) and raceways (tapered inner and outer rings) are designed to handle both radial and axial loads simultaneously. This design allows for efficient distribution of load across the bearing.
- They can be adjusted to achieve specific preloads or clearances, which helps in optimizing the performance and longevity of the bearing in various applications.
- It  provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. The bearings can be used in fixed positions or allowed to float in the housing bore.
Product Specification :
d – Bore |
3 1/2 in88.900 mm |
D – Cup Outer Diameter |
7.874 in200 mm |
B – Cone Width |
1.9375 in49.213 mm |
C – Cup Width |
1.3750 in34.925 mm |
T – Bearing Width |
2.0772 in52.761 mm |
