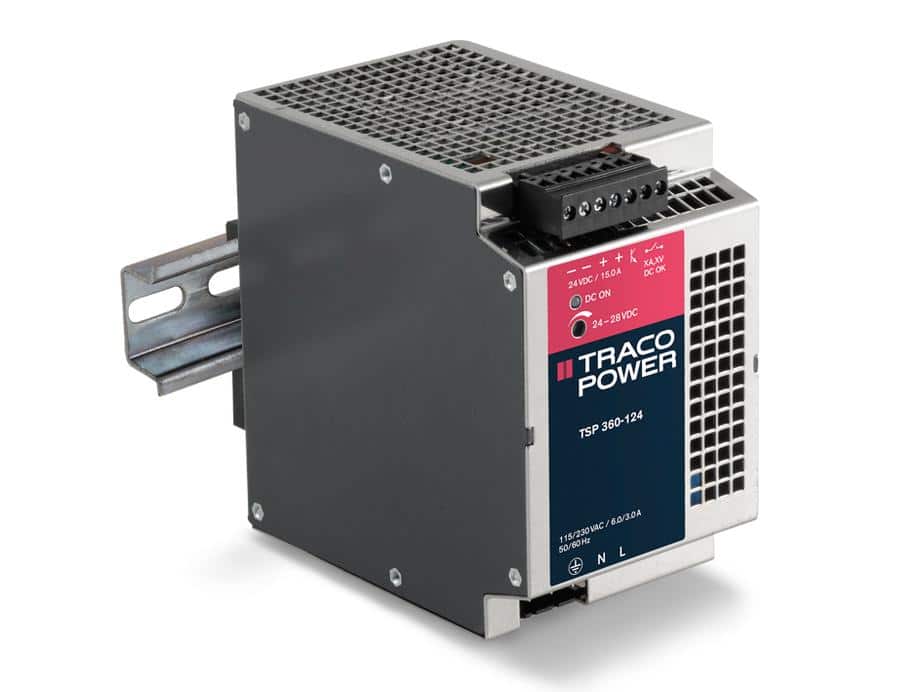

Traco Power TSP360-124 Module Power Supply
Traco Power TSP360-124 Module Power Supply
Product Description :
- It is a compact, pre-packaged unit designed to supply electrical power to a device or circuit, typically providing regulated voltage and current. These power supply modules are often used in a wide range of applications where space, reliability, and efficiency are crucial.
- It  a highly reliable, redundant power system can be configured without any additional components. This module enforces the equivalent sharing of the output current of the power supplies. In the event of a failed or disconnected power supply, the second unit will automatically supply the full current to the load. The redundancy of the system is monitored and, indicated by an alarm output. The inputs are hot swappable.
Product Specification :
- Output Voltage- 24 VDC
- Output Adjustment 1- 24-28 VDC
- Output Current- 15000 mA
- Power Rating- 360 W
- Number of Outputs- single
- Input Voltage- 85-264 VAC
- Housing Type- Metal Case
- Mounting Type- DIN-Rail Mount
- Connection Type- Screw Terminal
- Length- 125 mm
- Width- 80 mm
- Depth- 125 mm
- Efficiency- 87 %
- Maximum Temperature- 40 °C
- Minimum Temperature- -25 °C
