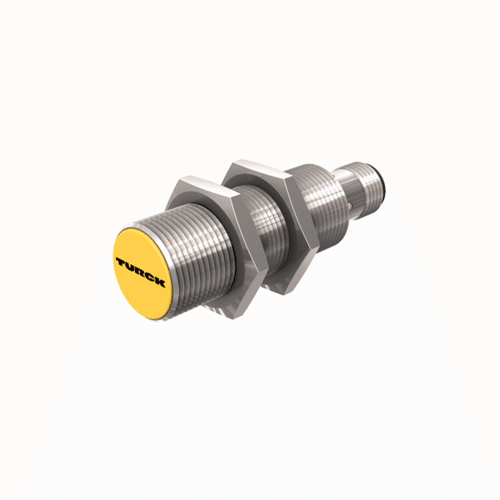

Turck 4020201 Inductive Sensor
Turck 4020201 Inductive Sensor
Product Description :
- An Inductive Sensor is a type of proximity sensor used to detect the presence of metallic objects without physical contact.
- It operates based on the principle of electromagnetic induction, where the sensor generates a magnetic field that interacts with metal objects, triggering a response in the sensor.
- It is a type of proximity sensor used to detect metallic objects without physical contact.
- It uses an oscillating electromagnetic field to sense changes caused by the presence of metal objects, which affect the field’s frequency and amplitude.
- It can detect objects without needing direct contact, reducing wear and tear on both the sensor and the object.
Product Specification:
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Rated switching distance | 10 mm |
| Mounting | Flush |
| Operating voltage | Nom. 8.2 VDC |
| Output function | NAMUR |
| Switching frequency | 0.50 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+70 °C |
