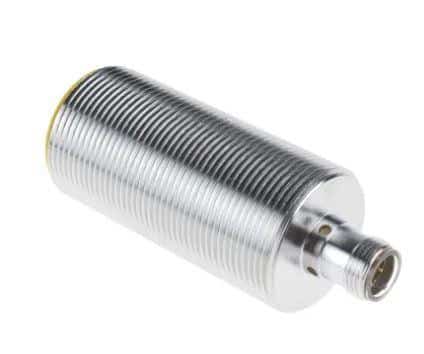

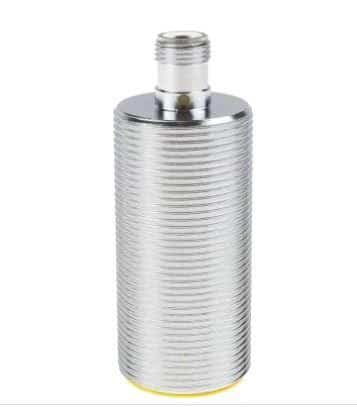

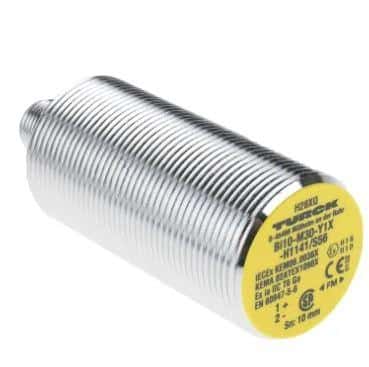

Turck BI10M30Y1XH1141/S56 Inductive Sensor
Turck BI10M30Y1XH1141/S56 Inductive Sensor
Product Description:
- An Inductive Sensor is a type of proximity sensor that detects the presence of metallic objects without the need for physical contact.
- It operates using electromagnetic fields to detect metal objects and is widely used in industrial automation, machinery, and control systems due to its reliability, accuracy, and long lifespan.
- They are designed for contact-less and wear-free detection.
- They are the perfect solution for breweries, frozen food, dairies and packaging applications.
- Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K.
- These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature.
Product Specification:
| Sensor Technology | Inductive |
| Thread Size | M30 x 1.5 |
| Body Style | Barrel |
| Output Type | NAMUR |
| Detection Range | 10 mm |
| Terminal Type | 4-Pin M12 Connector |
| Supply Voltage | 8.2 V dc |
| IP Rating | IP67 |
| Length | 74.5mm |
| Maximum DC Voltage | 8.2V |
| Mounting Type | Flush |
| Switching Current | 1.2 mA |
| Maximum Switching Frequency | 500Hz |
| Shielding | Partial |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +70°C |
| Housing Material | CuZn, Metal |
| Minimum Operating Temperature | -25°C |
