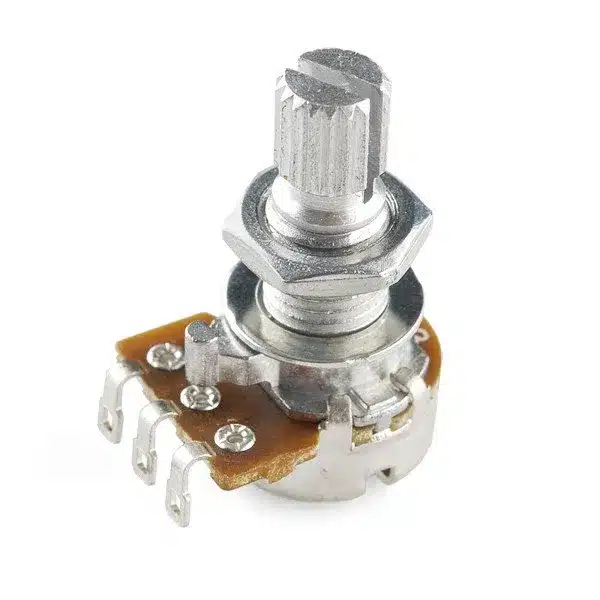

TUTHILL 1703 Potentiometer
TUTHILL 1703 Potentiometer
Product Description:
- A Potentiometer is a type of variable resistor that is commonly used to measure or adjust voltage in an electrical circuit.
- It can be used as a voltage divider, where it allows you to change the output voltage by adjusting its resistance.
- Potentiometers are widely used in various applications such as controlling the volume on audio equipment, adjusting brightness in lighting systems, and in sensors for measuring displacement.
- It’s a type of variable resistor that has three terminals and a movable contact called a wiper.
- By rotating the knob or shaft of the potentiometer, the wiper’s position along a resistive track changes, resulting in a change in resistance and an adjustment in the output voltage or signal.
- They are commonly found in a wide range of electronics, including audio equipment, instrumentation, control systems, robotics, and more.
- They provide a convenient and effective way to manually adjust various parameters within electronic circuits.
- The TUTHILL 1703 Potentiometer is a precision electronic component designed to provide accurate position sensing, signal control, and voltage regulation in industrial and mechanical applications. Engineered for reliability and high performance, the TUTHILL 1703 Potentiometer ensures stable output, smooth operation, and consistent electrical response in demanding environments.
- Manufactured using high-quality materials and precision components, the TUTHILL 1703 Potentiometer delivers excellent durability, long service life, and superior resistance to wear, vibration, and harsh operating conditions. It is commonly used in industrial machinery, automation systems, hydraulic equipment, control panels, and heavy-duty equipment where precise control and measurement are essential.
Product Specification:
- Mechanical Characteristics: Total rotational angle : 300u00b0 u00b1 5u00b0
- Switch Rotational angle : 35u00b0 u00b1 5u00b0
- Rotational torque : 2 ~ 20mN.m (20 ~200gf.cm)
- Switch Action : 15-45mNm. (150-450gf.cm)
- Rotation stopper strength : 0.7N.m (7kgf.cm)
- Push pull strength : 80N (4kgf)
- Bushing nut tightening strength : 0.7N.m (7kgf.cm)
- Electrical characteristics: Total resistance : 22k
- Total resistance tolerance : u00b1 20% (more than 1Mu038f u00b1 30%)
- Rated power : Curve B:0.2W, Other than B:0.1W
- Switch Rated Power : 0.5A at AC/250V
- Max. operating voltage : curve B : 200V, Other than B : 150V
- Switch Contact Resistance : less than 30mu038f
- Resistance taper : A,B,C,D,W
- max Insulation resistance : More than 100Mu038f at DC 500V
- Durability: Rotational life : 10,000 Cycles
- Withstand voltage : for 1 minute or more at AC 500V
- Slide noise : less than 80mV
