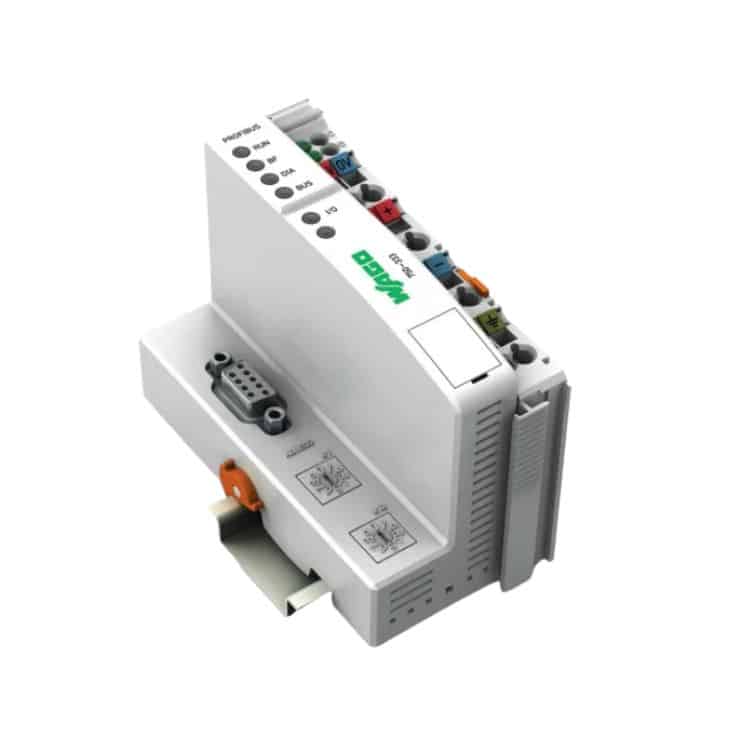

WAGO 750-333 Fieldbus Coupler
WAGO 750-333 Fieldbus Coupler
Product Description:
- They are essential components in industrial automation and control systems, enabling communication between different devices and fieldbuses within a larger control network.
- It allows for digital communication between devices in an industrial setting, enabling efficient data exchange and control over a network.
- The fieldbus coupler acts as an intermediary between the field devices and the higher-level control system or controller.
- The WAGO 750-333 Fieldbus Coupler is a high-performance industrial communication module designed to connect WAGO I/O systems to PROFIBUS DP networks. The WAGO 750-333 Fieldbus Coupler enables reliable data exchange between field devices and PLC controllers, making it an essential component in modern industrial automation systems.
- Engineered for seamless integration, the WAGO 750-333 Fieldbus Coupler supports fast data transmission, stable network communication, and flexible I/O expansion. This fieldbus coupler is ideal for use in manufacturing plants, process automation, power generation systems, and industrial control panels where dependable communication is critical.
Product Specification:
| Communication | PROFIBUS |
| Number of fieldbus nodes on master (max.) | 96 |
| Number of I/O points | 6,000 |
| Baud rate | 9.6 kBd … 12 MBd |
| Bus segment length (max.) | 1200Â m |
| Transmission medium | Cu cable per EN 50170 |
| Transmission time | typ. 1 ms (10 couplers; each 32 digital I/O and 12 Mbaud) max. 3.3 ms |
| Number of modules per node (max.) | 63 |
| Input and output process image (fieldbus) max. | 244Â bytes/244Â bytes |
| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection) |
| Current consumption (5 V system supply) | 200mA |
| Total current (system supply) | 1,800mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts |
| Input current (typ.) at nominal load (24Â V) | 500mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 87% |
| Isolation | 500Â V system/field |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10A |
Connection Data:
| Connection technology: communication/fieldbus | PROFIBUS:Â 1 x D-Sub 9 socket |
| Connection technology: field supply | 6 x CAGE CLAMP® |
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connection technology: device configuration | 1 x Male connector; 4-pole |
| Connection type 1 | System/field supply |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical Data:
| Width | 50.5 mm / 1.988 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 71.1 mm / 2.799 inches |
| Depth from upper-edge of DIN-rail | 63.9 mm / 2.516 inches |
Material Data:
| Color | light gray |
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 2.988MJ |
